W29N01HVDKNF - Winbond

Description: NAND Flash 1G-bit NAND flash, 3V, 1-bit ECC, 3V, 48 ball VFBGA (x8)

Download W29N01HVDKNF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W29N01HVDKNF model

Email notifications will be applied after download.

Send part feedback

Symbol

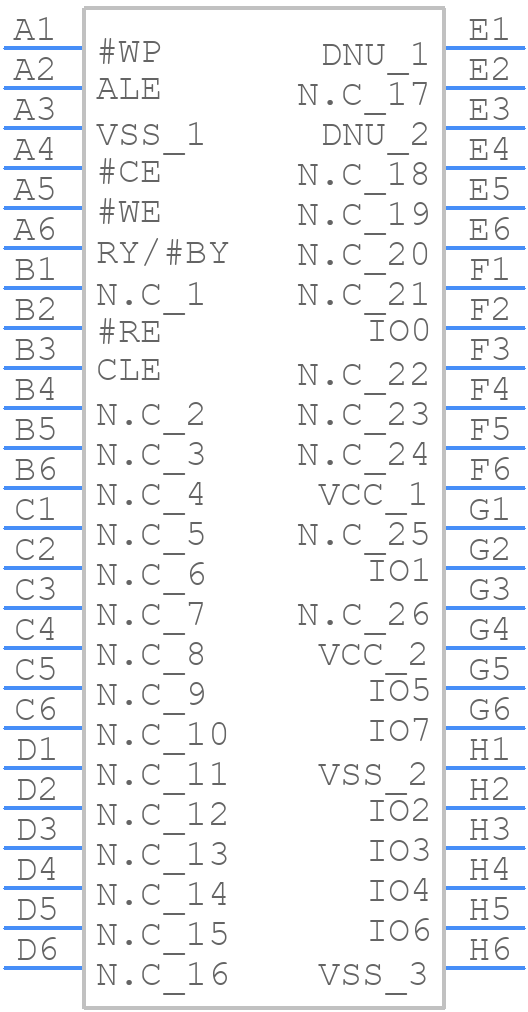

W29N01HVDKNF - Winbond - PCB symbol

PCB Footprints

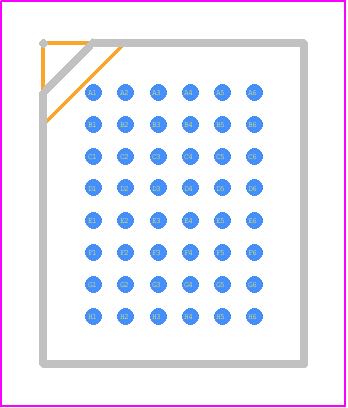

W29N01HVDKNF - Winbond PCB footprint - BGA - BGA - VFBGA - 48

3D Models

W29N01HVDKNF - Winbond - 3D model - BGA - VFBGA - 48

Datasheet Download Datasheet
Stock & Prices Price & Stock for W29N01HVDKNF
Part Number W29N01HVDKNF
Manufacturer Winbond
Pin Count 48
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - VFBGA - 48
Released Date Jul 29, 2024
Last Modified Date Jul 29, 2024 9:37 AM UTC
Pinout / Pin List Click Here (Member Only)

W29N01HVDKNF Details

Manufacturer Part Number:
W29N01HVDKNF
Manufacturer:
Winbond Electronics Corp

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

W29N01HVDKNF Overview

Use the download button to access the W29N01HVDKNF schematic symbol, PCB footprint, and 3D model.
