Part Image

W29N01HVSINA - Winbond

Description: 1Gb SLC NAND Flash MHz TSOPI48

Download W29N01HVSINA Model

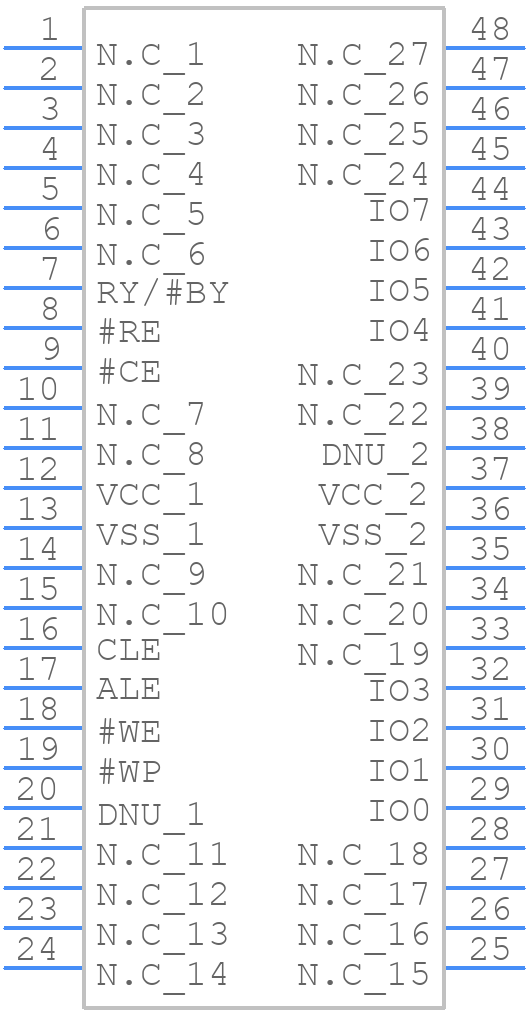

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W29N01HVSINA - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - TSOP-48
click to zoom
3D Models
W29N01HVSINA - Winbond  - 3D model - Small Outline Packages - TSOP-48
click to zoom

W29N01HVSINA Details

  • Manufacturer Part Number:

    W29N01HVSINA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP1-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    4.6

  • Command User Interface:

    YES

  • Data Polling:

    NO

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Sectors/Size:

    1K

  • Number of Terminals:

    48

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Page Size:

    1K words

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3.3 V

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    128K

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Toggle Bit:

    YES

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.025 ms

W29N01HVSINA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the W29N01HVSINA is -40°C to 85°C.
  • The hold signal (HOLD#) should be asserted low during a write operation to prevent any other device from accessing the memory array.
  • The write protect (WP#) pin is used to prevent accidental writes to the memory array. When WP# is low, the memory array is write-protected.
  • A sector erase operation can be performed by sending the erase command (0x60) followed by the sector address and then the confirm command (0xD0).
  • The maximum number of erase cycles for the W29N01HVSINA is 100,000 cycles.
