W29N01HVSJNF - Winbond

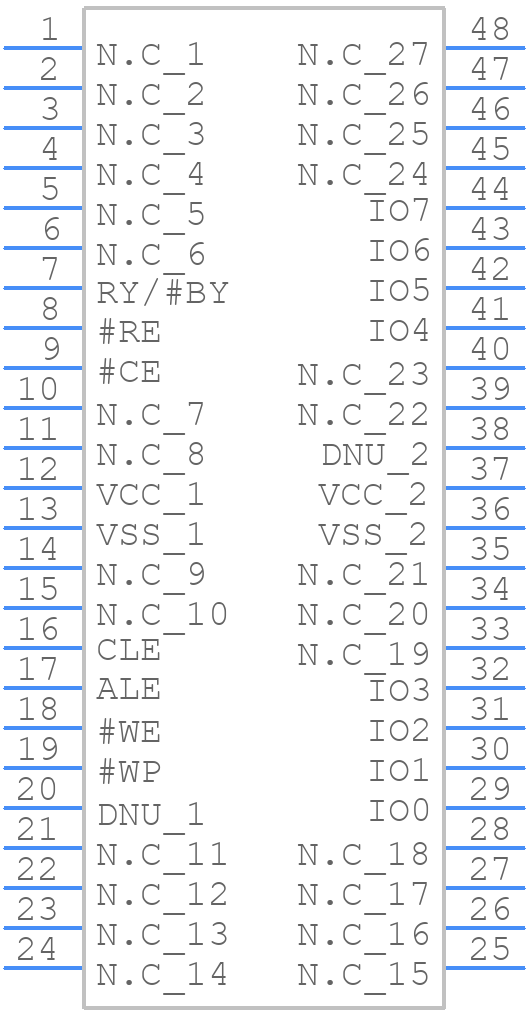

W29N01HVSJNF Details

• Manufacturer Part Number:

  W29N01HVSJNF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

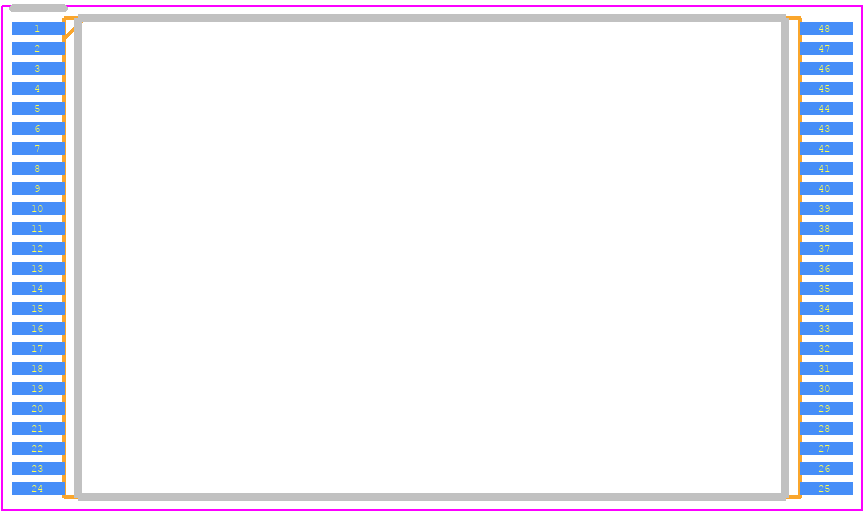

• Package Description:

  TSOP1-48

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Winbond Electronics Corp

• YTEOL:

  4.6

• Command User Interface:

  YES

• Data Polling:

  NO

• Data Retention Time-Min:

  10

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G48

• Length:

  18.4 mm

• Memory Density:

  1073741824 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Sectors/Size:

  1K

• Number of Terminals:

  48

• Number of Words:

  134217728 words

• Number of Words Code:

  128000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  128MX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP1

• Package Equivalence Code:

  TSSOP48,.8,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Page Size:

  1K words

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  3.3 V

• Ready/Busy:

  YES

• Seated Height-Max:

  1.2 mm

• Sector Size:

  128K

• Standby Current-Max:

  0.00005 A

• Supply Current-Max:

  0.035 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Toggle Bit:

  YES

• Type:

  SLC NAND TYPE

• Width:

  12 mm

• Write Cycle Time-Max (tWC):

  0.025 ms
