W29N01HZDINA - Winbond

Description: Basic Features – Density: 1Gbit (Single chip solution) – Vcc: 1.7V to 1.95V – Bus width: x8, x16 – Operating temperature  Industrial: -40°C to 85°C  Industrial Plus: -40°C to 105°C  Single-Level Cell (SLC) technology.  Organization – Density: 1G-bit/128M-byte – Page size  2,112 bytes (2048 + 64 bytes)  1,056 words (1024 + 32 words) – Block size  64 pages (128K + 4K bytes)  64 pages (64K + 2K words)  Highest Performance – Read performance (Max.)  Random read: 25us  Sequential re

Download W29N01HZDINA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W29N01HZDINA model

Email notifications will be applied after download.

Send part feedback

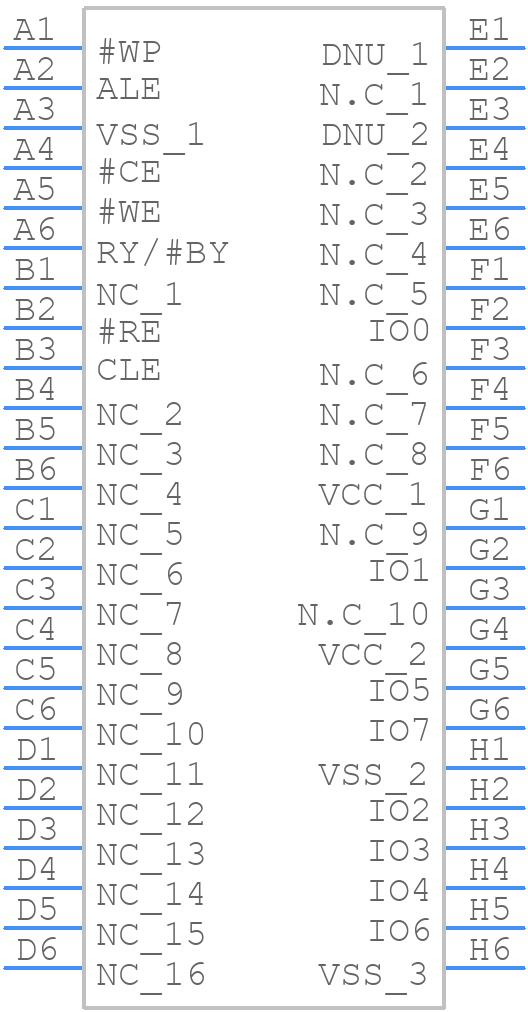

Symbol

W29N01HZDINA - Winbond - PCB symbol

PCB Footprints

W29N01HZDINA - Winbond PCB footprint - BGA - BGA - 48 ball VFBGA (x8)*

3D Models

W29N01HZDINA - Winbond - 3D model - BGA - 48 ball VFBGA (x8)*

Datasheet Download Datasheet
Stock & Prices Price & Stock for W29N01HZDINA
Part Number W29N01HZDINA
Manufacturer Winbond
Pin Count 48
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 48 ball VFBGA (x8)*
Released Date Jul 22, 2024
Last Modified Date Jul 22, 2024 6:31 AM UTC
Pinout / Pin List Click Here (Member Only)

W29N01HZDINA Details

Manufacturer Part Number:
W29N01HZDINA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
VFBGA-48
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Manufacturer:
Winbond Electronics Corp
YTEOL:
5
Command User Interface:
YES
Common Flash Interface:
NO
Data Polling:
NO
Data Retention Time-Min:
10
Endurance:
100000 Write/Erase Cycles
JESD-30 Code:
R-PBGA-B48
Length:
8 mm
Memory Density:
1073741824 bit
Memory IC Type:
FLASH
Memory Width:
8
Number of Functions:
1
Number of Sectors/Size:
1024
Number of Terminals:
48
Number of Words:
134217728 words
Number of Words Code:
128000000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
128MX8
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA48,6X8,32
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Page Size:
2K words
Parallel/Serial:
PARALLEL
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Programming Voltage:
1.8 V
Ready/Busy:
YES
Seated Height-Max:
1 mm
Sector Size:
128K
Standby Current-Max:
0.00005 A
Supply Current-Max:
0.035 mA
Supply Voltage-Max (Vsup):
1.95 V
Supply Voltage-Min (Vsup):
1.7 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Toggle Bit:
NO
Type:
SLC NAND TYPE
Width:
6.5 mm
Write Cycle Time-Max (tWC):
0.025 ms
Write Protection:
HARDWARE
