W29N02GVSIAA - Winbond

Description: 2Gb SLC NAND Flash MHz TSOPI48

Download W29N02GVSIAA Model

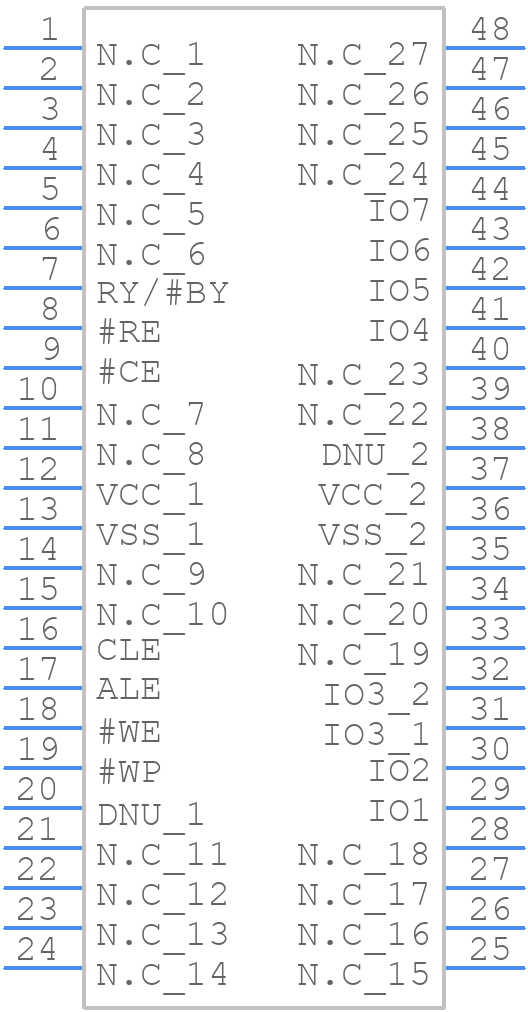

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W29N02GVSIAA - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - TSOP 48-pin 12x20--
click to zoom
3D Models
W29N02GVSIAA - Winbond  - 3D model - Small Outline Packages - TSOP 48-pin 12x20--
click to zoom

W29N02GVSIAA Details

  • Manufacturer Part Number:

    W29N02GVSIAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP1-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    5.65

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    ONFI 1.0

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.000025 ms

  • Write Protection:

    HARDWARE

W29N02GVSIAA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the W29N02GVSIAA is -40°C to 85°C.
  • The hold signal (HOLD#) should be asserted low during a write operation to prevent any other access to the device.
  • The WP# (Write Protect) pin is used to prevent write operations to the device. When WP# is low, the device is write-protected.
  • A sector erase operation can be performed by sending the erase command (0x20) followed by the address of the sector to be erased.
  • The typical programming time for a page is around 1.5 ms (max 3 ms).
