The recommended operating voltage range for the W29N02GVSIAF is 2.7V to 3.6V, with a typical voltage of 3.3V.
The hold pin (HOLD#) should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
The W29N02GVSIAF has a maximum of 100,000 erase cycles per sector, with a total of 2,048 sectors. This means the device can withstand a total of 204,800,000 erase cycles.
The W29N02GVSIAF provides a Ready/Busy# (RB#) output pin that indicates the device's status. When RB# is low, the device is busy with a write or erase operation. When RB# is high, the device is ready for the next operation.
The Write Protect (WP#) pin is used to prevent accidental writes or erases to the device. When WP# is low, the device is write-protected, and any write or erase operations will be ignored.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W29N02GVSIAF Overview

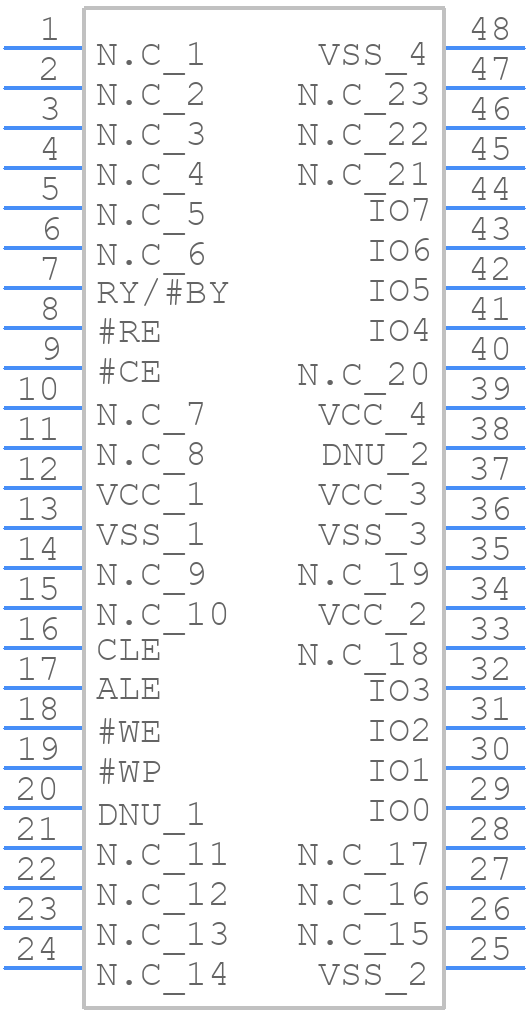

Use the download button to access the W29N02GVSIAF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W29N0,
or try a keyword search, such as Flash Memories
