W29N08GVSIAF - Winbond

Description: 8Gb SLC NAND Flash MHz TSOPI48

Download W29N08GVSIAF Model

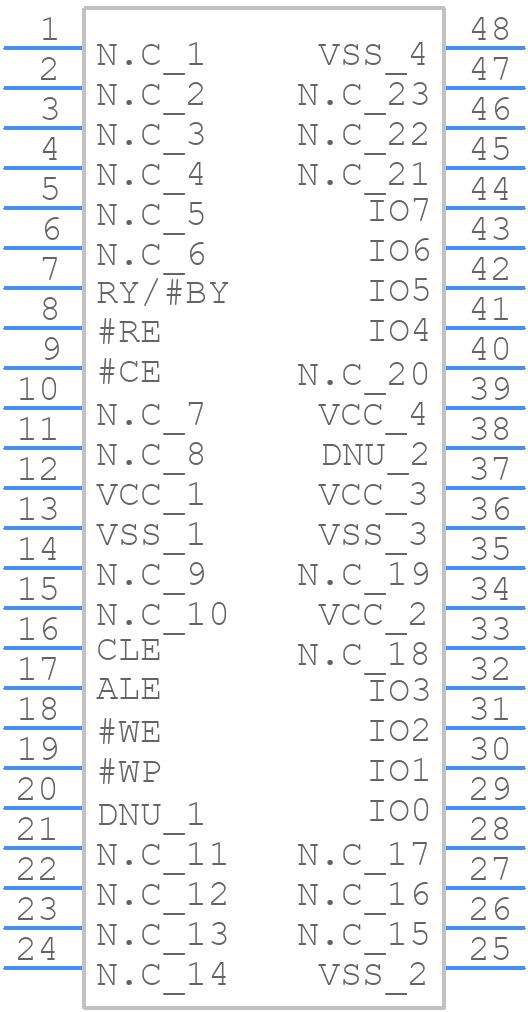

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W29N08GVSIAF - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - Figure 13-1 TSOP 48-PIN 12X20mm*
click to zoom
3D Models
W29N08GVSIAF - Winbond  - 3D model - Small Outline Packages - Figure 13-1 TSOP 48-PIN 12X20mm*
click to zoom

W29N08GVSIAF Details

  • Manufacturer Part Number:

    W29N08GVSIAF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP1-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.1

  • Data Retention Time-Min:

    10

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    8589934592 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    1073741824 words

  • Number of Words Code:

    1000000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1GX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.025 ms

W29N08GVSIAF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the W29N08GVSIAF is -40°C to 85°C, with a storage temperature range of -65°C to 150°C.
  • The HOLD# signal should be asserted low to pause the current operation, and de-asserted high to resume the operation. During hold, the device will tri-state its outputs and ignore any further input signals.
  • The WEL signal is used to enable or disable write operations. When WEL is high, the device is in write enable mode, and when it's low, the device is in write disable mode.
  • To perform a sector erase operation, send the sector erase command (0x20) followed by the sector address, and then assert the Write Enable (WE#) signal low. The device will then erase the specified sector.
  • The W29N08GVSIAF has a minimum of 100,000 erase cycles per sector, with a maximum of 10,000 erase cycles per block.
