W29N08GZSIBA - Winbond

Description: Basic Features – Density : 8Gbit (2 chip stacked solution) – Vcc : 1.7V to 1.95V – Bus width : x8/x16 – Operating temperature  Industrial: -40°C to 85°C  Industrial Plus: -40°C to 105°C  Single-Level Cell (SLC) technology.  Organization – Density: 8G-bit/1G-byte – Page size  2,112 bytes (2048 + 64 bytes)  1,056 words (1024 + 32 words) – Block size  64 pages (128K + 4K bytes)  64 pages (64K + 2K words)  Highest Performance – Read performance (Max.)  Random read: 25us  Sequential

Download W29N08GZSIBA Model
Schematic
symbols

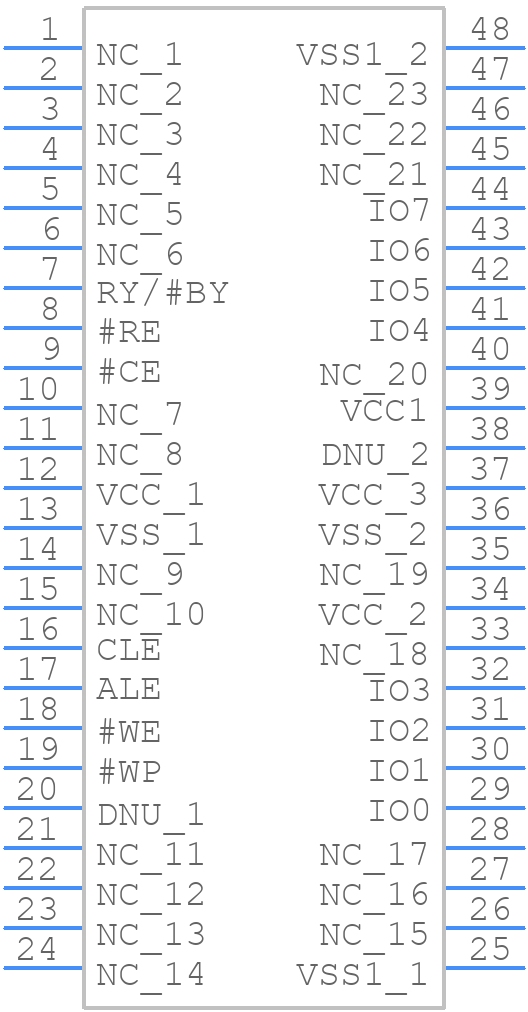

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W29N08GZSIBA - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - TSOP 48-pin 12x20
click to zoom
3D Models
W29N08GZSIBA - Winbond  - 3D model - Small Outline Packages - TSOP 48-pin 12x20
click to zoom

W29N08GZSIBA Details

  • Manufacturer Part Number:

    W29N08GZSIBA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP1-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.25

  • Command User Interface:

    YES

  • Data Polling:

    NO

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    8589934592 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Sectors/Size:

    8K

  • Number of Terminals:

    48

  • Number of Words:

    1073741824 words

  • Number of Words Code:

    1000000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1GX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Page Size:

    2K words

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    128K

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Toggle Bit:

    YES

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.025 ms
