W631GU6MB11S - Winbond

Description:  Power Supply: 1.35V (typ.), VDD, VDDQ = 1.283V to 1.45V  Backward compatible to VDD, VDDQ = 1.5V ± 0.075V  Double Data Rate architecture: two data transfers per clock cycle  Eight internal banks for concurrent operation  8 bit prefetch architecture  CAS Latency: 5, 6, 7, 8, 9, 10, 11, 13 and 14  Burst length 8 (BL8) and burst chop 4 (BC4) modes: fixed via mode register (MRS) or selectable OnThe-Fly (OTF)  Programmable read burst ordering: interleaved or nibble sequential  Bi-directional, d

Download W631GU6MB11S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

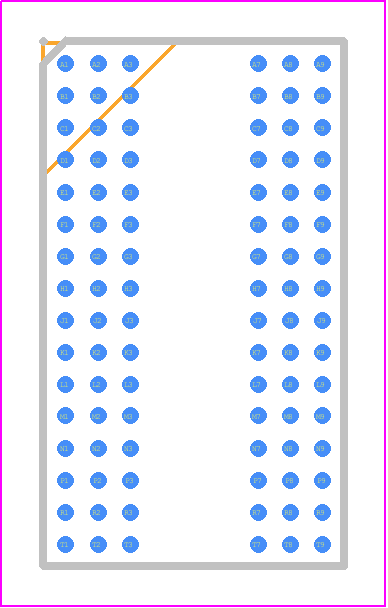

W631GU6MB11S - Winbond PCB footprint - BGA - BGA - VFBGA96
