W632GG6NB-11 - Winbond

Description: The W632GG6NB is a 2G bits DDR3 SDRAM and speed involving -09, -11, -12, -15, 09I, 11I, 12I, 15I, 09J, 11J, 12J and 15J.

Download W632GG6NB-11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
W632GG6NB-11 - Winbond - PCB symbol
click to zoom
PCB Footprints

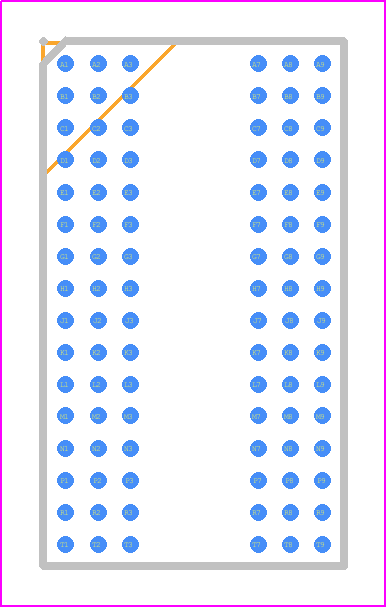

W632GG6NB-11 - Winbond PCB footprint - BGA - BGA - W631GG6MB-11
click to zoom
3D Models
W632GG6NB-11 - Winbond - 3D model - BGA - W631GG6MB-11
click to zoom

W632GG6NB-11 Details

  • Manufacturer Part Number:

    W632GG6NB-11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFBGA-96

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Access Mode:

    MULTI BANK PAGE BURST

  • Additional Feature:

    AUTO/SELF REFRESH

  • JESD-30 Code:

    R-PBGA-B96

  • Length:

    13 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    DDR3 DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    96

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    95 °C

  • Organization:

    128MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.575 V

  • Supply Voltage-Min (Vsup):

    1.425 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

W632GG6NB-11 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the W632GG6NB-11 is 0°C to 70°C, with a storage temperature range of -40°C to 85°C.
  • The power-up sequence for the W632GG6NB-11 should follow the order of VCC, then VPP, and finally CLK. This ensures proper initialization and prevents damage to the device.
  • The W632GG6NB-11 supports a maximum clock frequency of 166 MHz, but it's recommended to operate at 133 MHz or lower for optimal performance and reliability.
  • A reliable reset mechanism can be implemented using an external reset IC or a discrete circuit that ensures a clean and stable reset signal to the W632GG6NB-11. The reset signal should be asserted for at least 10 ms to ensure proper reset.
  • The VCC power supply should be decoupled with a 0.1 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel, while the VPP power supply should be decoupled with a 0.1 μF ceramic capacitor. Both power supplies should be filtered and regulated to ensure a stable voltage supply.
