W634GU6QB-09 - Winbond

Description: 4Gb DDR3 SDRAM 2133MHz VFBGA96

Download W634GU6QB-09 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
W634GU6QB-09 - Winbond - PCB symbol
click to zoom
PCB Footprints

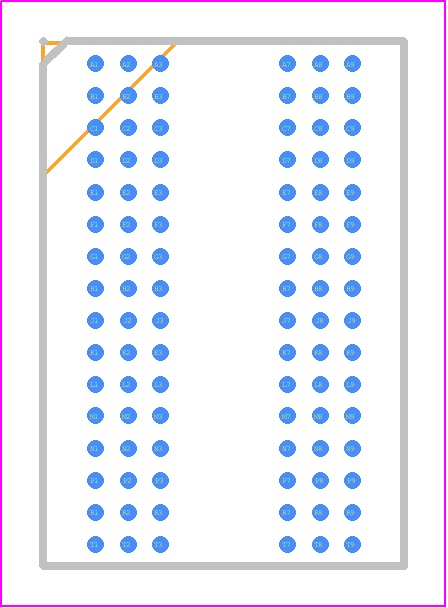

W634GU6QB-09 - Winbond PCB footprint - BGA - BGA - VFBGA - 96_2024
click to zoom
3D Models
W634GU6QB-09 - Winbond - 3D model - BGA - VFBGA - 96_2024
click to zoom

W634GU6QB-09 Details

  • Manufacturer Part Number:

    W634GU6QB-09

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFBGA-96

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Access Mode:

    MULTI BANK PAGE BURST

  • Access Time-Max:

    0.18 ns

  • Additional Feature:

    ALSO OPERATES AT 1.5V NOMINAL SUPPLY

  • Clock Frequency-Max (fCLK):

    1066 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    8

  • JESD-30 Code:

    R-PBGA-B96

  • Length:

    13 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    DDR3L DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    96

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    95 °C

  • Organization:

    256MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA96,9X16,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Refresh Cycles:

    8192

  • Seated Height-Max:

    1 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    8

  • Standby Current-Max:

    0.021 A

  • Supply Current-Max:

    0.188 mA

  • Supply Voltage-Max (Vsup):

    1.45 V

  • Supply Voltage-Min (Vsup):

    1.283 V

  • Supply Voltage-Nom (Vsup):

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7.5 mm

W634GU6QB-09 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the W634GU6QB-09 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 125°C.
  • The power-up sequence for the W634GU6QB-09 is critical to ensure proper operation. It's recommended to power up the VCC supply before the VPP supply, and the VCC supply should be stable before applying the clock signal. Additionally, the VPP supply should be turned off before the VCC supply during power-down.
  • The maximum clock frequency supported by the W634GU6QB-09 is 133 MHz, as specified in the datasheet. However, it's essential to note that the actual clock frequency may vary depending on the system design and operating conditions.
  • The W634GU6QB-09 has a built-in write protection mechanism that can be implemented using the WP# pin. When the WP# pin is low, the device is in write-protect mode, and any write operations will be ignored. To enable write operations, the WP# pin should be set high.
  • The typical programming time for the W634GU6QB-09 varies depending on the programming method and the size of the data being programmed. However, according to the datasheet, the typical programming time is around 10-15 seconds for a 64-Kbyte block.
