W63AH2NBVABE - Winbond

Description: SDRAM - Mobile LPDDR3 Memory IC 1Gbit HSUL_12 800 MHz 5.5 ns 178-VFBGA (11x11.5)

Download W63AH2NBVABE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

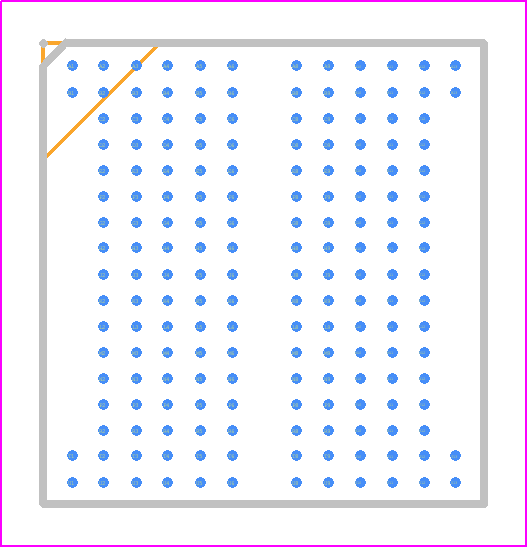

W63AH2NBVABE - Winbond PCB footprint - BGA - BGA - VFBGA 178 Ball
click to zoom
3D Models
W63AH2NBVABE - Winbond  - 3D model - BGA - VFBGA 178 Ball
click to zoom

W63AH2NBVABE Details

  • Manufacturer Part Number:

    W63AH2NBVABE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFBGA-178

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.32

  • Date Of Intro:

    2019-05-30

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    4

  • Access Mode:

    MULTI BANK PAGE BURST

  • Additional Feature:

    SELF REFRESH; IT ALSO REQUIRES 1.8V NOM; TERM PITCH-MAX

  • Clock Frequency-Max (fCLK):

    800 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    8

  • JESD-30 Code:

    R-PBGA-B178

  • Length:

    11.5 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    LPDDR3 DRAM

  • Memory Width:

    32

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    178

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Organization:

    32MX32

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA178,13X17,32/25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    8

  • Standby Current-Max:

    0.005 A

  • Supply Current-Max:

    0.036 mA

  • Supply Voltage-Max (Vsup):

    1.3 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    11 mm

W63AH2NBVABE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Keep the signal traces short and away from noise sources. Refer to Winbond's application note AN-001 for more details.
  • Power up the VCCQ pin first, followed by the VCC pin. Ensure that the VCCQ pin reaches its minimum operating voltage before applying clock signals. Refer to the datasheet's power-up sequence diagram for more information.
  • The W63AH2NBVABE is rated for industrial temperature range, which is -40°C to 85°C. However, it's recommended to operate within -20°C to 70°C for optimal performance and reliability.
  • Use a reset IC with a voltage supervisor, such as the TLV7031, to ensure a clean and reliable reset signal. The reset signal should be asserted for at least 10ms to ensure a proper reset.
  • The clock signal should have a rise time of less than 1ns and a fall time of less than 1ns. The clock signal should also be terminated with a 50Ω resistor to prevent reflections.
