W66CP2NQUAFJ - Winbond

Description: DRAM 4Gb LPDDR4, DDP, x32, 1600MHz, -40C 105C

Download W66CP2NQUAFJ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W66CP2NQUAFJ model

Email notifications will be applied after download.

Send part feedback

Symbol

W66CP2NQUAFJ - Winbond - PCB symbol

PCB Footprints

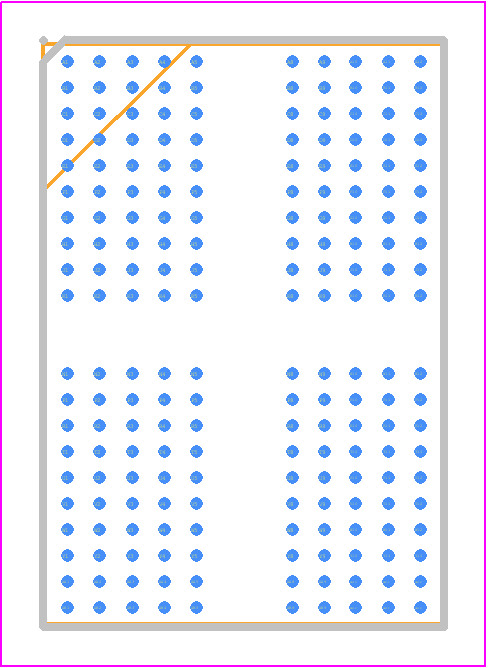

W66CP2NQUAFJ - Winbond PCB footprint - BGA - BGA - WFBGA 200 Ball (10x14.5 mm2 , Ball pitch: 0.8 x 0.65mm)

3D Models

W66CP2NQUAFJ - Winbond - 3D model - BGA - WFBGA 200 Ball (10x14.5 mm2 , Ball pitch: 0.8 x 0.65mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for W66CP2NQUAFJ
Part Number W66CP2NQUAFJ
Manufacturer Winbond
Pin Count 200
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - WFBGA 200 Ball (10x14.5 mm2 , Ball pitch: 0.8 x 0.65mm)
Released Date May 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W66CP2NQUAFJ Details

Manufacturer Part Number:
W66CP2NQUAFJ
Manufacturer:
Winbond Electronics Corp

Trust Checks

Expert Contribution

System Verified

Community Approved

W66CP2NQUAFJ Overview

Use the download button to access the W66CP2NQUAFJ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W66CP, or try a keyword search, such as DRAMs
