Part Image

W957D6NBGX5I - Winbond

Description: DRAM 128Mb HyperRAM x16, 200MHz, Ind temp, 1.8V

Download W957D6NBGX5I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

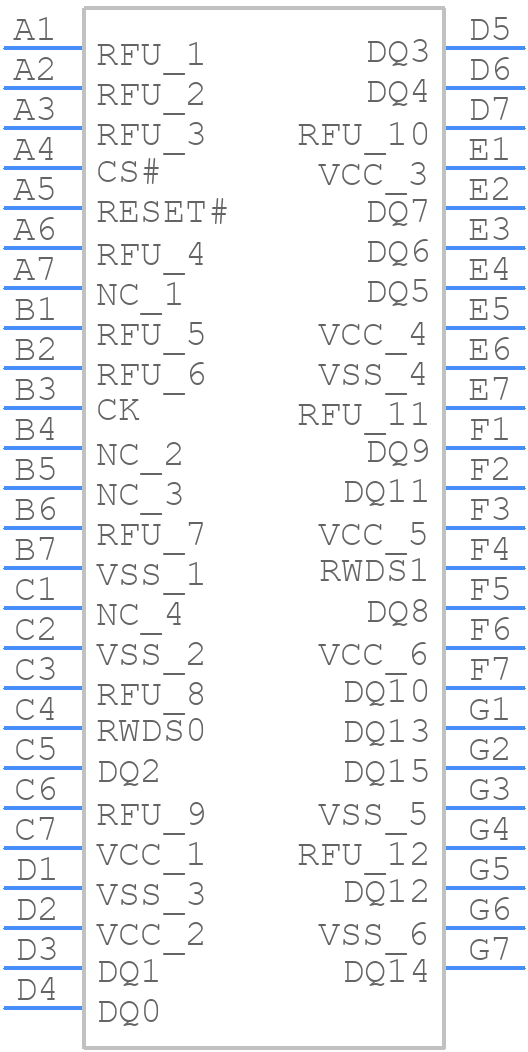

W957D6NBGX5I - Winbond - PCB symbol
click to zoom
PCB Footprints
W957D6NBGX5I - Winbond PCB footprint - BGA - BGA - WFBGA 49 Balls (4x4 mm2, Ball pitch: 0.5mm)
click to zoom
3D Models
W957D6NBGX5I - Winbond - 3D model - BGA - WFBGA 49 Balls (4x4 mm2, Ball pitch: 0.5mm)
click to zoom

W957D6NBGX5I Details

  • Manufacturer Part Number:

    W957D6NBGX5I

  • Manufacturer:

    Winbond Electronics Corp

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W957D6NBGX5I Overview

Use the download button to access the W957D6NBGX5I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W957D, or try a keyword search, such as Other Memory ICs
