W972GG6JB-18 - Winbond

Description: IC DRAM 2GBIT PARALLEL 84WBGA

Download W972GG6JB-18 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

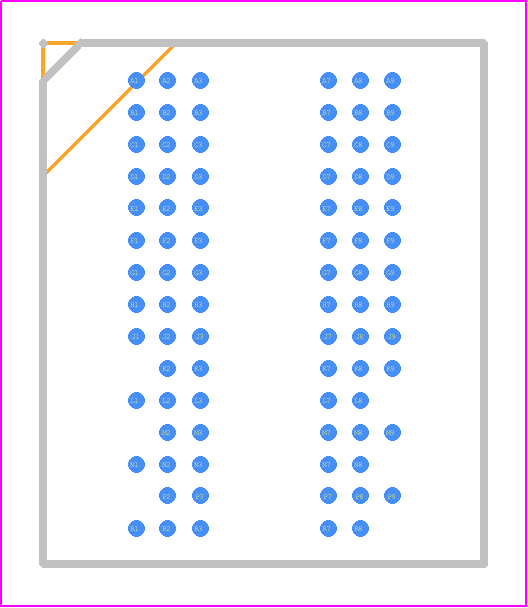

W972GG6JB-18 - Winbond PCB footprint - BGA - BGA - Package Outline -WBGA84
click to zoom
3D Models
W972GG6JB-18 - Winbond  - 3D model - BGA - Package Outline -WBGA84
click to zoom

W972GG6JB-18 Details

  • Manufacturer Part Number:

    W972GG6JB-18

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    11 X 13 MM, 0.80 MM PITCH, ROHS COMPLIANT, WBGA-84

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Access Mode:

    MULTI BANK PAGE BURST

  • Access Time-Max:

    0.35 ns

  • Additional Feature:

    AUTO/SELF REFRESH

  • Clock Frequency-Max (fCLK):

    533 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    4,8

  • JESD-30 Code:

    R-PBGA-B84

  • Length:

    13 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    DDR2 DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    84

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Organization:

    128MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA84,9X15,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Refresh Cycles:

    8192

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    4,8

  • Standby Current-Max:

    0.012 A

  • Supply Current-Max:

    0.31 mA

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    11 mm
