W972GG6JB-25I - Winbond

Description: DRAM Chip DDR2 SDRAM 2G-Bit 128Mx16 1.8V 84-Pin WBGA

Download W972GG6JB-25I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

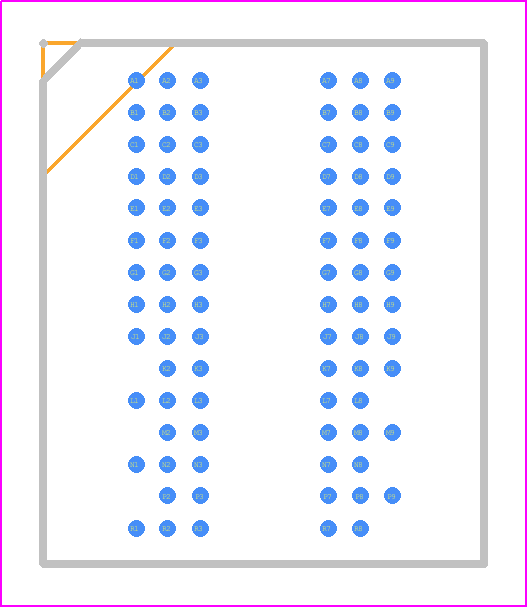

W972GG6JB-25I - Winbond PCB footprint - BGA - BGA - Package Outline -WBGA84
click to zoom
3D Models
W972GG6JB-25I - Winbond  - 3D model - BGA - Package Outline -WBGA84
click to zoom

W972GG6JB-25I Details

  • Manufacturer Part Number:

    W972GG6JB-25I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA, BGA84,9X15,32

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Winbond Electronics Corp

  • Access Time-Max:

    0.4 ns

  • Clock Frequency-Max (fCLK):

    400 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    4,8

  • JESD-30 Code:

    R-PBGA-B84

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    DDR DRAM

  • Memory Width:

    16

  • Number of Terminals:

    84

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA84,9X15,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Power Supplies:

    1.8 V

  • Qualification Status:

    COMMERCIAL

  • Refresh Cycles:

    8192

  • Sequential Burst Length:

    4,8

  • Standby Current-Max:

    0.012 A

  • Subcategory:

    DRAMs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM
