The W972GG6JB25I has an operating temperature range of -40°C to 85°C.
The power-up sequence for the W972GG6JB25I involves applying VCC before VPP, and ensuring that VCC reaches 1.2V before applying any input signals.
The recommended PCB layout for the W972GG6JB25I involves placing decoupling capacitors close to the power pins, and using a solid ground plane to reduce noise and improve signal integrity.
To troubleshoot issues with the W972GG6JB25I, check the power supply voltage, clock signal, and data bus signals using an oscilloscope or logic analyzer. Also, verify that the chip is properly configured and that the firmware is correct.
Yes, the W972GG6JB25I is suitable for high-reliability applications, but it's essential to follow proper design and manufacturing guidelines to ensure the chip operates within its specified parameters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W972GG6JB25I Overview

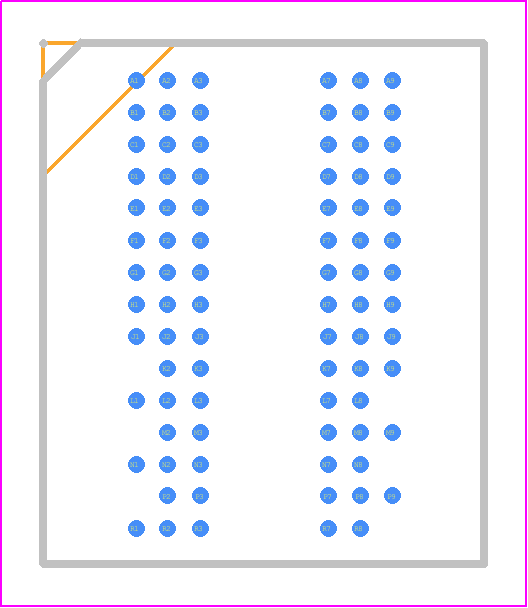

Use the download button to access the W972GG6JB25I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W972G,
or try a keyword search, such as DRAMs
