The recommended operating temperature range for the W978H6KBVX2I is -40°C to 85°C, but it can also operate in an extended temperature range of -40°C to 105°C with some performance degradation.
The power-up sequence for the W978H6KBVX2I is critical. It's recommended to power up the VCCQ pin first, followed by the VCC pin, and then the input signals. This ensures proper initialization and prevents latch-up or damage to the device.
The W978H6KBVX2I supports a maximum clock frequency of 166 MHz, but it's recommended to operate at a frequency of 133 MHz or lower for optimal performance and reliability.
The reset sequence for the W978H6KBVX2I involves asserting the reset pin (RESET#) low for at least 10 ns, followed by a 10 ns delay, and then releasing the reset pin. This ensures a clean reset and proper initialization of the device.
The recommended termination scheme for the W978H6KBVX2I is to use a 22-ohm resistor in series with a 22-pF capacitor (R-C termination) on the output pins to ensure signal integrity and reduce reflections.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W978H6KBVX2I Overview

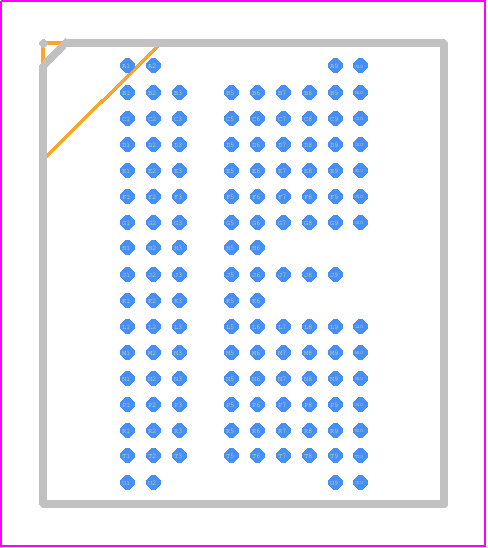

Use the download button to access the W978H6KBVX2I schematic symbol, PCB footprint, and 3D model.
