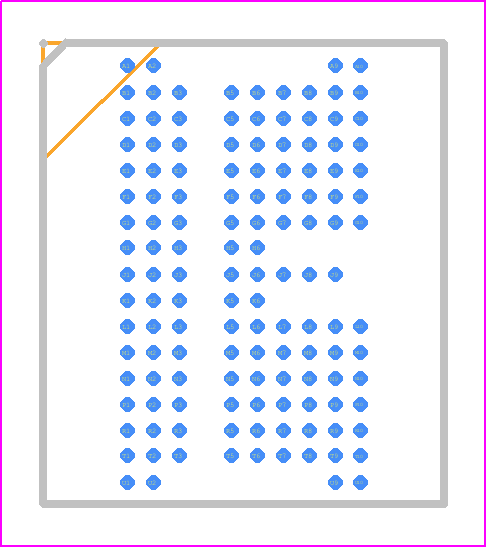

W979H6KBVX2E footprint, schematic symbol and 3D model by Winbond

Symbol

PCB Footprints

3D Models

W979H6KBVX2E Details

The recommended operating temperature range for the W979H6KBVX2E is -40°C to 85°C, but it can also operate in an extended temperature range of -40°C to 105°C with reduced performance and reliability.
The power-up sequence for the W979H6KBVX2E is critical. It's recommended to power up the VCC supply before the VPP supply, and ensure that the VCC supply is stable before applying the VPP supply. A power-up sequence diagram is usually provided in the application notes or design guides.
The maximum allowed voltage on the input pins of the W979H6KBVX2E is VCC + 0.5V, but it's recommended to keep the input voltage within the VCC range to ensure reliable operation and prevent latch-up or damage.
A reliable reset circuit for the W979H6KBVX2E can be implemented using a resistor-capacitor (RC) network or a dedicated reset IC. The reset signal should be asserted for at least 10ms to ensure a proper reset. A detailed reset circuit diagram is usually provided in the application notes or design guides.
The maximum clock frequency supported by the W979H6KBVX2E is 133MHz, but it's recommended to operate the device at a lower frequency to ensure reliable operation and minimize power consumption.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the W979H6KBVX2E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W979H, or try a keyword search, such as DRAMs
