W9812G6KH-5I - Winbond

Description: DRAM 128Mb SDR SDRAM x16, 200MHz, Ind temp

Download W9812G6KH-5I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

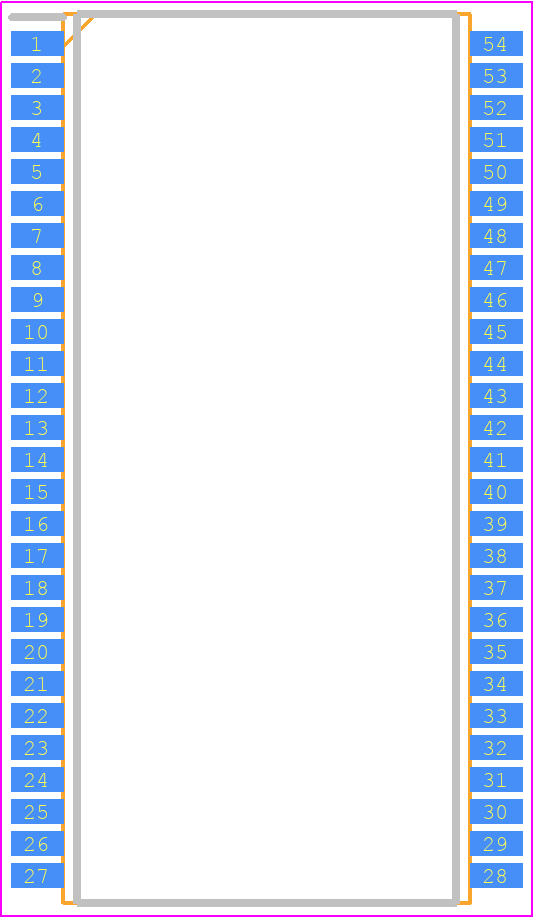

W9812G6KH-5I - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 54L TSOPII-400 MIL
click to zoom
3D Models
W9812G6KH-5I - Winbond  - 3D model - Small Outline Packages - 54L TSOPII-400 MIL
click to zoom

W9812G6KH-5I Details

  • Manufacturer Part Number:

    W9812G6KH-5I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP2-54

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.02

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    4

  • Access Mode:

    FOUR BANK PAGE BURST

  • Access Time-Max:

    4.5 ns

  • Additional Feature:

    AUTO/SELF REFRESH

  • Clock Frequency-Max (fCLK):

    200 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    1,2,4,8

  • JESD-30 Code:

    R-PDSO-G54

  • Length:

    22.22 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    SYNCHRONOUS DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    54

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP54,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Refresh Cycles:

    4096

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    1,2,4,8,FP

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    10.16 mm

W9812G6KH-5I Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the W9812G6KH-5I is 2.7V to 3.6V.
  • The W9812G6KH-5I has an internal POR circuit that ensures the device is in a reset state during power-up. No external reset circuitry is required.
  • The W9812G6KH-5I supports a maximum clock frequency of 166 MHz.
  • To implement a reliable write operation, ensure that the WE# signal is low, the CE# signal is low, and the OE# signal is high. Also, ensure that the address and data lines are stable before and during the write operation.
  • The WP# pin is a write protect pin that allows the user to protect the entire memory array from write operations. When WP# is low, the device is in write-protect mode.
