W9816G6JH-5 - Winbond

W9816G6JH-5 Details

• Manufacturer Part Number:

  W9816G6JH-5

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

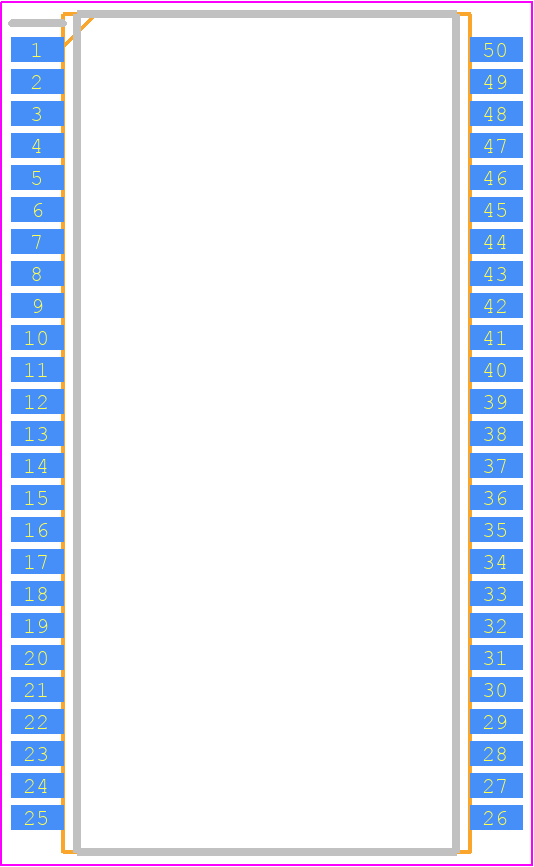

• Package Description:

  TSOP2-50

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.02

• Manufacturer:

  Winbond Electronics Corp

• YTEOL:

  3

• Access Mode:

  DUAL BANK PAGE BURST

• Access Time-Max:

  4.5 ns

• Additional Feature:

  AUTO/SELF REFRESH

• JESD-30 Code:

  R-PDSO-G50

• Length:

  20.95 mm

• Memory Density:

  16777216 bit

• Memory IC Type:

  SYNCHRONOUS DRAM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  50

• Number of Words:

  1048576 words

• Number of Words Code:

  1000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  1MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP2

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1.2 mm

• Self Refresh:

  YES

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  10.16 mm
