The maximum operating temperature range for the W9816G6JH-6 is -40°C to 85°C.
The power-up sequence should be VCC first, then VPP, and then the clock signal. For power-down, the sequence should be reversed. It's also recommended to add a 10uF capacitor between VCC and GND to filter out noise.
The recommended clock frequency for the W9816G6JH-6 is 1-100 MHz, but it can operate up to 133 MHz with a -6 speed grade.
A reliable reset circuit can be implemented using a resistor-capacitor (RC) network with a diode to ensure a clean reset signal. The reset signal should be asserted for at least 10ms to ensure a proper reset.
For optimal performance, it's recommended to keep the signal traces short and away from noise sources. Use a 4-layer PCB with a solid ground plane and a separate power plane. Also, use a 0.1uF decoupling capacitor between VCC and GND near the chip.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W9816G6JH-6 Overview

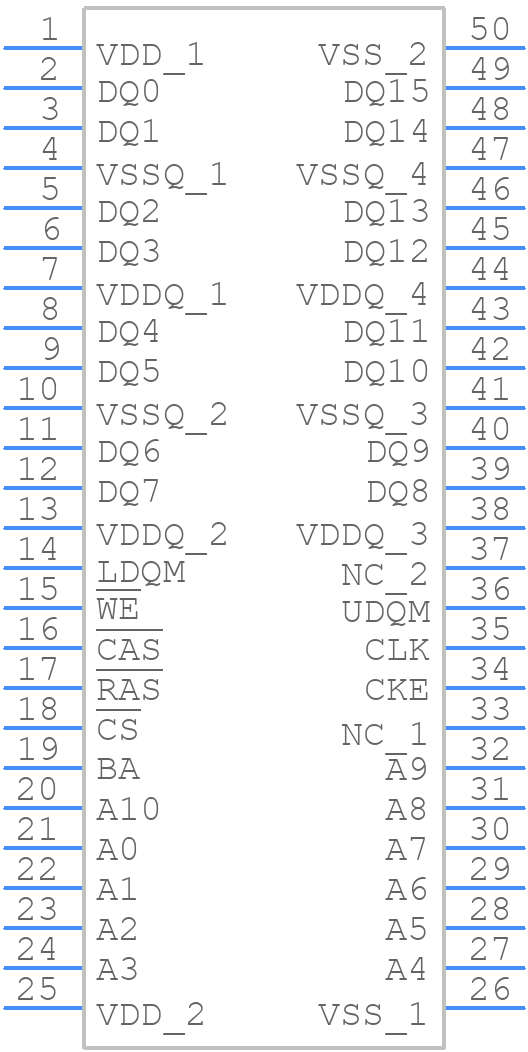

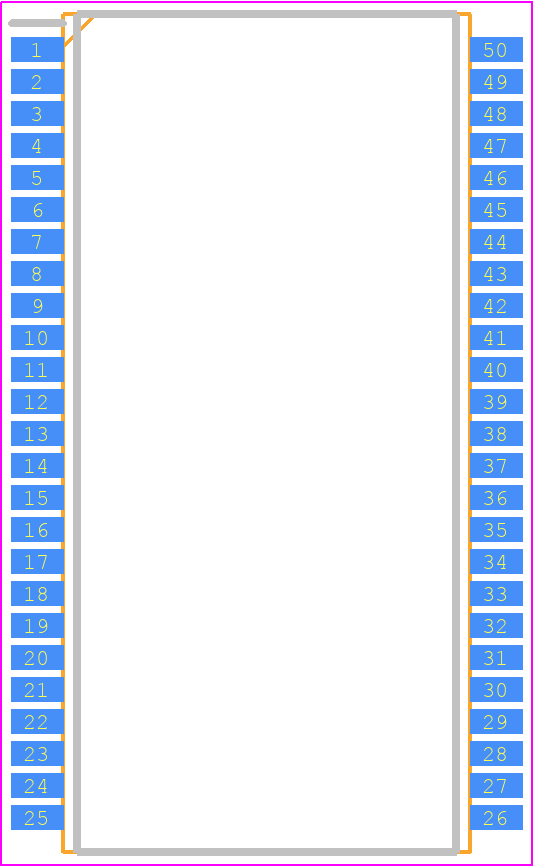

Use the download button to access the W9816G6JH-6 schematic symbol, PCB footprint, and 3D model.
