The recommended PCB layout for optimal performance involves keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the chip. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
The W9864G6KH-5 requires a specific power-up and power-down sequencing to ensure proper operation. The recommended sequence is to power up the VCCQ and VCCD pins first, followed by the VREF pin, and then the clock signal. During power-down, the sequence should be reversed.
The W9864G6KH-5 has an operating temperature range of -40°C to 85°C, but it's recommended to operate within the range of 0°C to 70°C for optimal performance and reliability.
To ensure clock signal integrity and reduce jitter, it's recommended to use a high-quality clock source, such as a crystal oscillator, and to use a clock buffer or repeater to regenerate the clock signal. Additionally, the PCB layout should be designed to minimize clock signal routing and to use a dedicated clock trace.
The recommended termination resistors for the DDR3 interface are 33 ohms for the data lines (DQ) and 22 ohms for the strobe lines (DQS). These values can be adjusted based on the specific system requirements and PCB layout.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W9864G6KH-5 Overview

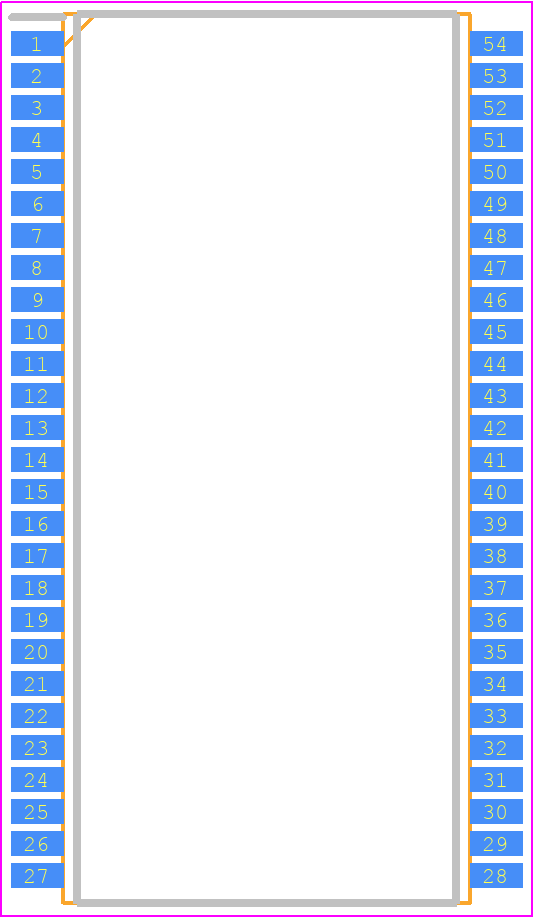

Use the download button to access the W9864G6KH-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like W9864,
or try a keyword search, such as DRAMs
