The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
The WM8510 can be configured for master or slave mode by setting the M/S bit in the Control Register (CR) to '1' for master mode or '0' for slave mode.
The WM8510 supports clock frequencies up to 50 MHz.
The WM8510 has a dedicated mute pin (MUTE) that can be used to mute the audio output. Asserting the MUTE pin will mute the audio output.
The recommended layout and routing for the WM8510 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8510GEDS/V Overview

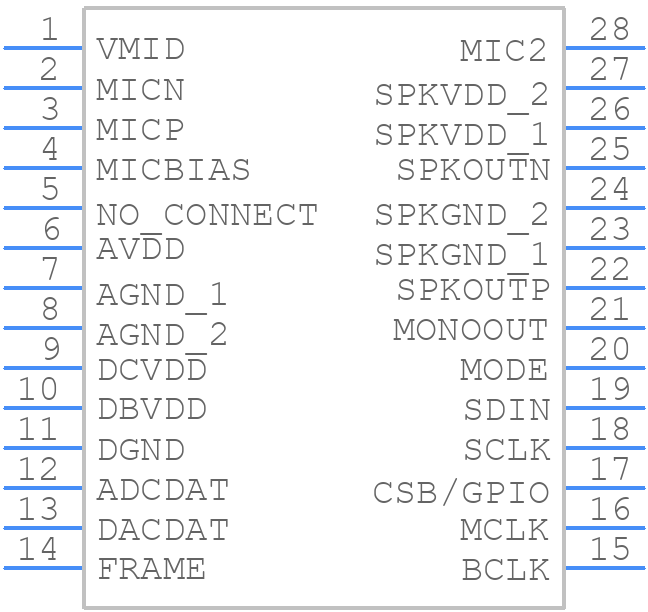

Use the download button to access the WM8510GEDS/V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM851,
or try a keyword search, such as Codecs
