WM8569SEDS/V - Cirrus Logic

Description: Interface - CODECs 6-Channel Stereo CODEC

Download WM8569SEDS/V Model

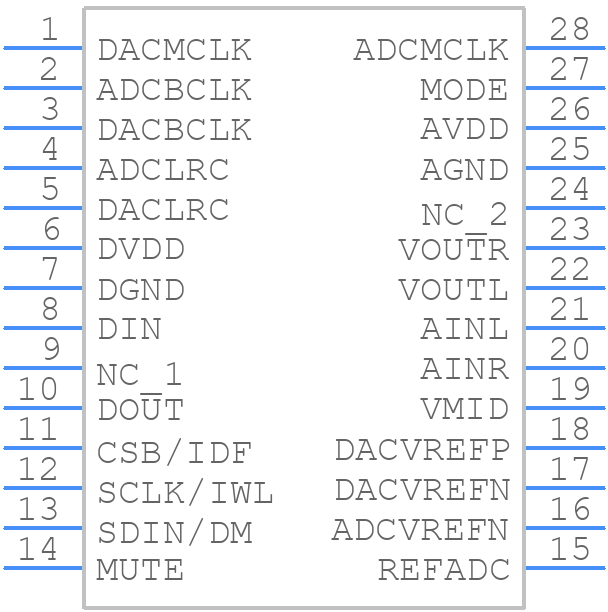

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WM8569SEDS/V - Cirrus Logic PCB footprint - Small Outline Packages - Small Outline Packages - WM8569SEDS/V
click to zoom
3D Models
WM8569SEDS/V - Cirrus Logic  - 3D model - Small Outline Packages - WM8569SEDS/V
click to zoom

WM8569SEDS/V Details

  • Manufacturer Part Number:

    WM8569SEDS/V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    10.20 X 5.30 MM, 1.75 MM HEIGHT, LEAD FREE, MO-150AH, SSOP-28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Filter:

    YES

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

WM8569SEDS/V Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To configure the WM8569SEDS/V for master clock mode, set the MCLK pin to the desired clock frequency and set the MCLKDIV pin to the appropriate division ratio. Additionally, set the CLKSEL pin to '0' to select the internal clock source.
  • The maximum input voltage for the ADC on WM8569SEDS/V is VREF (reference voltage) + 0.3V. Exceeding this voltage may result in incorrect ADC readings or damage to the device.
  • To optimize the WM8569SEDS/V for low power consumption, set the device to the lowest possible clock frequency, disable unused features, and use the power-down mode when not in use. Additionally, consider using a lower voltage supply and optimizing the analog circuitry for low power consumption.
  • The recommended layout and routing for the WM8569SEDS/V involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, ensure that the power supply decoupling capacitors are placed close to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WM8569SEDS/V Overview

Use the download button to access the WM8569SEDS/V schematic symbol, PCB footprint, and 3D model.
