The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the digital power supplies (VDDIO and VDDC). This ensures that the analog and digital circuits are powered up in the correct order.
To configure the WM8782SEDS/RV for master clock mode, set the MCLK pin as an output by setting the MCLKOE bit in the Clock Control Register (address 0x04). Then, set the desired clock frequency using the MCLKDIV registers (addresses 0x05-0x06).
The digital mute pin (DMUTE) is used to mute the digital output of the codec. When DMUTE is asserted (low), the digital output is muted, and when it is de-asserted (high), the digital output is enabled.
To optimize the ADC performance, ensure that the analog input signal is within the recommended range (typically 2.2Vpp), and that the ADC clock frequency is set correctly. Additionally, adjust the ADC gain settings (registers 0x10-0x11) to optimize the signal-to-noise ratio (SNR) for your specific application.
To minimize noise and interference, keep analog and digital signals separate, and use separate power planes and ground planes for analog and digital circuits. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8782SEDS/RV Overview

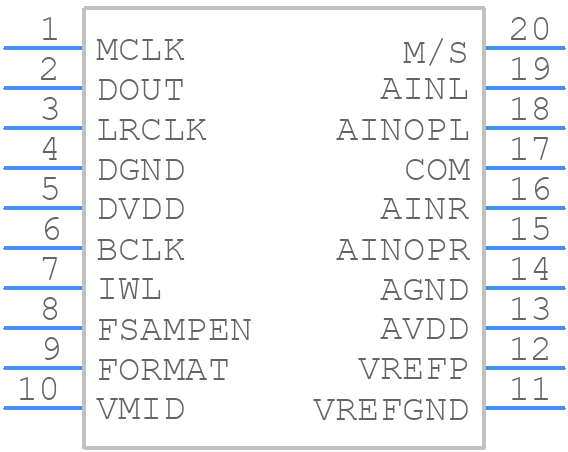

Use the download button to access the WM8782SEDS/RV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM878,
or try a keyword search, such as Other Consumer ICs
