WM8904CGEFL/RV - Cirrus Logic

Description: Interface - CODECs Ultra Low Pwr CODEC

Download WM8904CGEFL/RV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

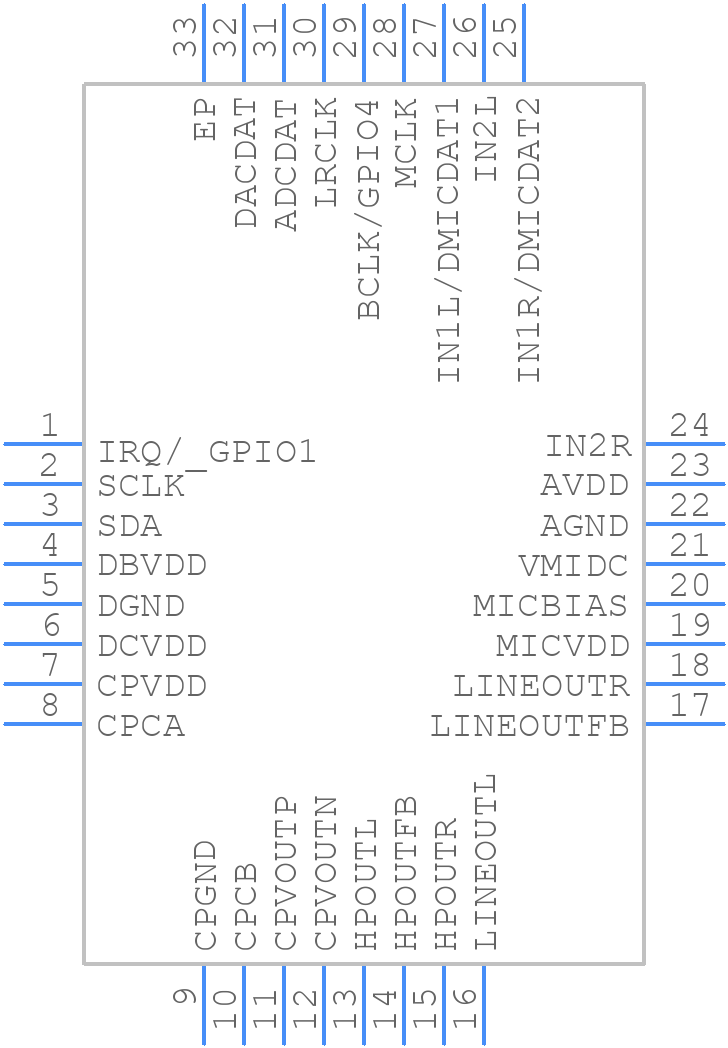

WM8904CGEFL/RV - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
WM8904CGEFL/RV - Cirrus Logic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32 _2023
click to zoom
3D Models
WM8904CGEFL/RV - Cirrus Logic - 3D model - Quad Flat No-Lead - QFN-32 _2023
click to zoom

WM8904CGEFL/RV Details

  • Manufacturer Part Number:

    WM8904CGEFL/RV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    6.6

  • Companding Law:

    A/MU-LAW

  • Filter:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

WM8904CGEFL/RV Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the WM8904CGEFL/RV can be found in the Cirrus Logic application note AN235, which provides guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize noise and interference.
  • The WM8904CGEFL/RV can be configured for different audio interfaces such as I2S, SPI, and AC'97 through the use of registers and control pins. The specific configuration will depend on the application and the interface required. Refer to the datasheet and application notes for more information.
  • The power consumption of the WM8904CGEFL/RV depends on the operating mode and the clock frequency. In typical operating conditions, the power consumption is around 20-30mA. However, this can vary depending on the specific application and usage. Refer to the datasheet for more information.
  • The WM8904CGEFL/RV has a mute pin that can be used to mute the audio output. The mute pin can be controlled through a digital signal or through the use of a register. Refer to the datasheet and application notes for more information on implementing a mute function.
  • The WM8904CGEFL/RV supports clock frequencies up to 50MHz. However, the maximum clock frequency may vary depending on the specific application and the clock source used. Refer to the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WM8904CGEFL/RV Overview

Use the download button to access the WM8904CGEFL/RV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM890, or try a keyword search, such as Codecs
