Description:These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The Watchdog Timer provides
A good PCB layout for the X5043PIZ-2.7A should prioritize noise reduction and decoupling. Place decoupling capacitors close to the IC, use a solid ground plane, and keep analog and digital signals separate. A 4-layer PCB with a dedicated power plane is recommended.
To ensure reliable communication, use a proper I2C bus layout, pull-up resistors, and a clock frequency within the recommended range (100 kHz to 400 kHz). Also, ensure that the slave address is correctly set and that there are no bus conflicts.
The X5043PIZ-2.7A has an operating temperature range of -40°C to +85°C. However, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures.
Yes, the X5043PIZ-2.7A is suitable for battery-powered devices due to its low power consumption (typically 1.5 μA in standby mode). However, consider the device's power-down mode and shutdown features to minimize power consumption during idle periods.
The X5043PIZ-2.7A's POR and BOD features ensure a reliable startup and operation. To handle these features, ensure that the power supply is stable and within the recommended range. Also, consider adding external circuitry to filter out power glitches and noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X5043PIZ-2.7A Overview

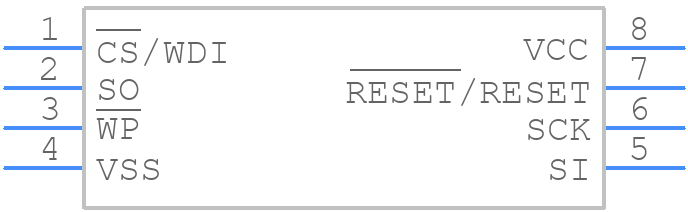

Use the download button to access the X5043PIZ-2.7A schematic symbol, PCB footprint, and 3D model.
