Description:These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The Watchdog Timer provides
A good PCB layout for the X5043PIZ involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the power traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve signal integrity.
To ensure proper power-up and initialization of the X5043PIZ, make sure to follow the recommended power-up sequence, which involves applying power to the VCC pin first, followed by the VPP pin. Also, ensure that the reset pin (RST) is properly connected to a pull-up resistor and a capacitor to ground to prevent unwanted resets.
The X5043PIZ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat dissipation through the use of thermal vias, heat sinks, or thermal pads. Additionally, ensure that the device is not exposed to excessive ambient temperatures or thermal gradients.
To troubleshoot issues with the X5043PIZ, start by verifying the power supply and clock signals. Check for noise or glitches on the power and clock lines, and ensure that the device is properly reset and initialized. Use a logic analyzer or oscilloscope to capture and analyze the signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the X5043PIZ is a sensitive device and requires proper ESD protection. Ensure that the device is handled and stored in an ESD-safe environment, and use ESD protection devices such as TVS diodes or ESD protection arrays on the input and output pins to prevent damage from electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X5043PIZ Overview

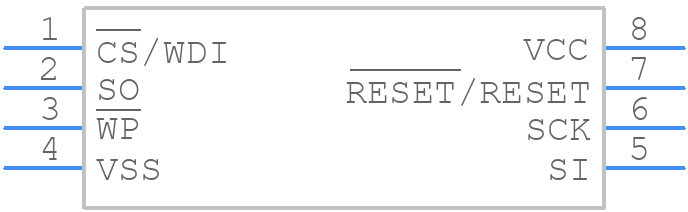

Use the download button to access the X5043PIZ schematic symbol, PCB footprint, and 3D model.
