Description:These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The Watchdog Timer provides
The recommended operating temperature range for the X5043PZ-4.5A is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
To ensure proper power-on and power-off sequencing, follow the recommended power-up and power-down procedures outlined in the datasheet. This typically involves applying power to the VCC pin before the VPP pin, and removing power from the VPP pin before the VCC pin.
The maximum allowed voltage on the VPP pin is 12.5V, as specified in the datasheet. Exceeding this voltage can cause permanent damage to the device.
The X5043PZ-4.5A has multiple power-saving modes, including standby and sleep modes. To handle these modes, follow the recommended procedures outlined in the datasheet, which typically involve setting specific register bits and waiting for the device to enter the desired mode.
For optimal performance and reliability, follow the recommended PCB layout and routing guidelines provided in the datasheet or application notes. This typically involves keeping sensitive signals away from noise sources, using proper decoupling capacitors, and minimizing trace lengths and impedance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X5043PZ-4.5A Overview

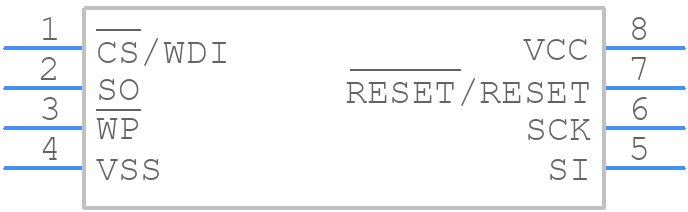

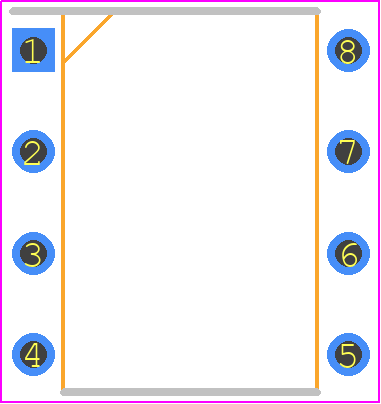

Use the download button to access the X5043PZ-4.5A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like X5043,
or try a keyword search, such as Power Management Circuits
