Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The XA1843ABGABL has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the thermal pad with components or soldermask.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 6.3V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended to minimize noise and ensure stable operation.
The enable pin (EN) is active-high, meaning it must be pulled high to enable the device. A pull-up resistor to VCC is recommended to ensure the pin is properly biased. The EN pin can also be connected to a logic signal or a power-good signal to enable the device only when the input voltage is within the specified range.
The XA1843ABGABL has a maximum output current capability of 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. Ensure the device is operated within the recommended operating conditions to avoid overheating or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XA1843ABGABL Overview

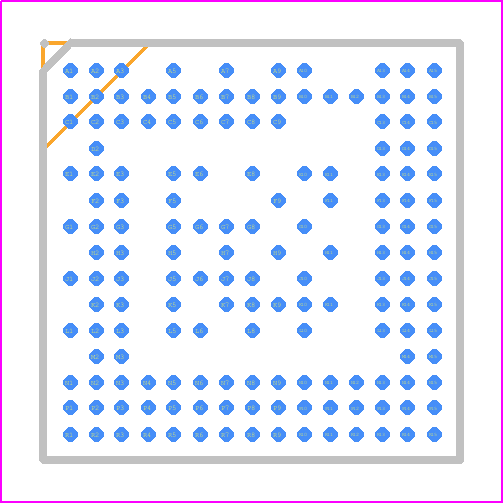

Use the download button to access the XA1843ABGABL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XA184,
or try a keyword search, such as Other Sensors/Transducers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
