XADS8168IRHBR - Texas Instruments

Description: 16-Bit, 1MSPS, 8-Channel SAR ADC With Easy-to-Drive Analog Inputs

Download XADS8168IRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

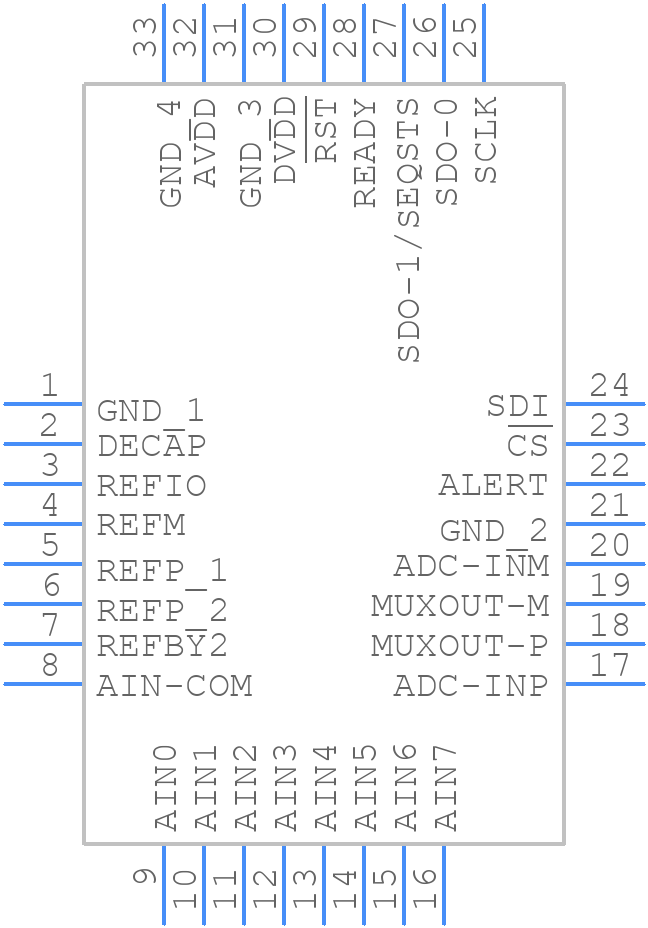

XADS8168IRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XADS8168IRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
XADS8168IRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

XADS8168IRHBR Details

  • Manufacturer Part Number:

    XADS8168IRHBR

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-32

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2018-01-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.2 V

  • Conversion Time-Max:

    0.66 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0012%

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

XADS8168IRHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the XADS8168IRHBR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The XADS8168IRHBR is a flexible device that can be configured for various sensor types through its programmable registers. The device's datasheet and user guide provide detailed information on how to configure the device for different sensor types, including accelerometers, gyroscopes, and magnetometers.
  • The XADS8168IRHBR can sample data at up to 12.5 kHz for each axis, allowing for high-speed data acquisition and analysis.
  • Calibration is critical for achieving optimal accuracy with the XADS8168IRHBR. Texas Instruments provides a calibration procedure in the device's user guide, which involves applying known inputs to the device and adjusting the internal registers to minimize errors and optimize performance.
  • The XADS8168IRHBR has a low power consumption of 1.5 mA in normal operating mode and 0.5 mA in low-power mode, making it suitable for battery-powered applications. The device also has a shutdown mode that reduces power consumption to less than 1 μA.
