XAM5728AABCXE footprint, schematic symbol and 3D model by Texas Instruments

Symbol

click to zoom

PCB Footprints

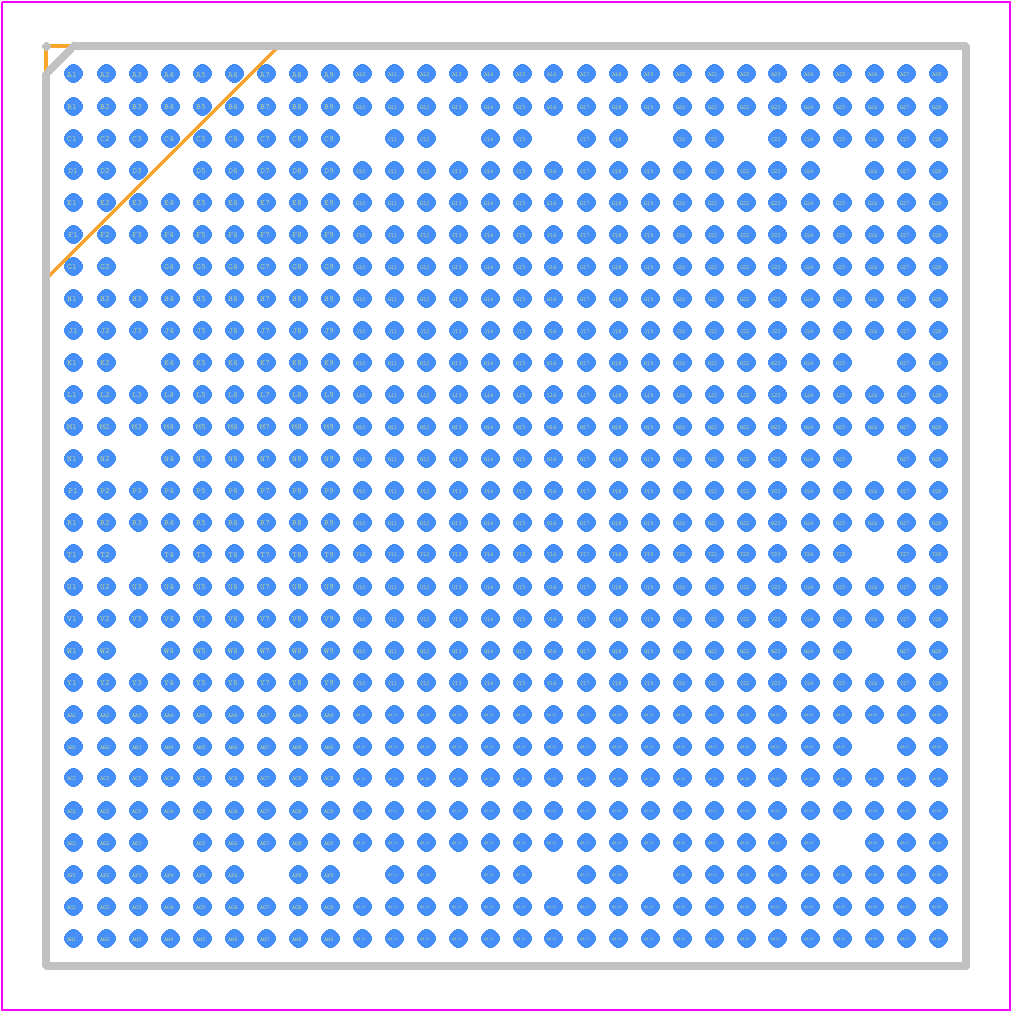

XAM5728AABCXE - Texas Instruments PCB footprint - BGA - BGA - ABC (S-PBGA-N760)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XAM5728AABCXE
Part Number XAM5728AABCXE
Manufacturer Texas Instruments
Pin Count 760
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - ABC (S-PBGA-N760)
Released Date Dec 16, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

XAM5728AABCXE Details

Manufacturer Part Number:
XAM5728AABCXE
Brand Name:
Texas Instruments
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
FCBGA-760
HTS Code:
8542.31.00.30
Manufacturer:
Texas Instruments
YTEOL:
0
JESD-30 Code:
S-PBGA-B760
JESD-609 Code:
e1
Length:
23 mm
Moisture Sensitivity Level:
3
Number of Terminals:
760
Operating Temperature-Max:
90 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
FBGA
Package Equivalence Code:
BGA760,28X28,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, FINE PITCH
Peak Reflow Temperature (Cel):
250
Seated Height-Max:
2.96 mm
Supply Voltage-Max:
1.2 V
Supply Voltage-Min:
1.11 V
Supply Voltage-Nom:
1.15 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
23 mm
uPs/uCs/Peripheral ICs Type:
SoC

XAM5728AABCXE Frequently Asked Questions (FAQs)

TI recommends a 4-layer PCB with a solid ground plane, and thermal vias connecting the exposed pad to the ground plane to ensure efficient heat dissipation.
Use a low-ESR capacitor (e.g., 10uF) close to the device, and consider a pi-filter or a ferrite bead to reduce noise and ripple.
Use a single 24MHz clock source, and divide it internally to generate the required clock frequencies for the processor, peripherals, and interfaces.
Use a reliable boot mechanism, such as a boot loader or a ROM-based boot, and ensure that the configuration pins are properly pulled up or down to prevent floating states.
Focus on power integrity, signal integrity, and thermal management. Ensure proper decoupling, signal routing, and heat dissipation to prevent overheating and signal degradation.
