XB24CZ7UIT-004 - Digi International

Description: DIGI INTERNATIONAL - XB24CZ7UIT-004 - RF Transceiver Module, DSSS Modulation, 250Kbps, 2.4GHz, -102dBm, 2.1V to 3.6V, SPI, UART

Download XB24CZ7UIT-004 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

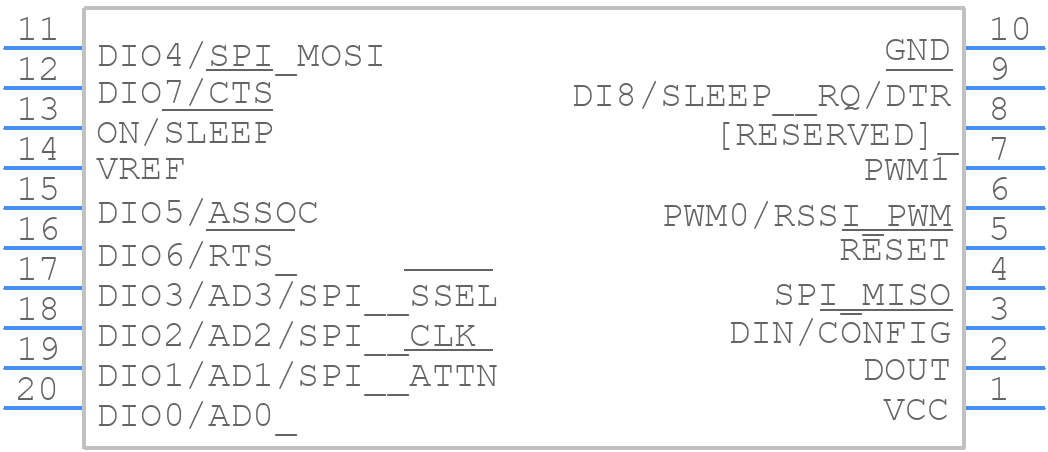

XB24CZ7UIT-004 - Digi International - PCB symbol
click to zoom
PCB Footprints

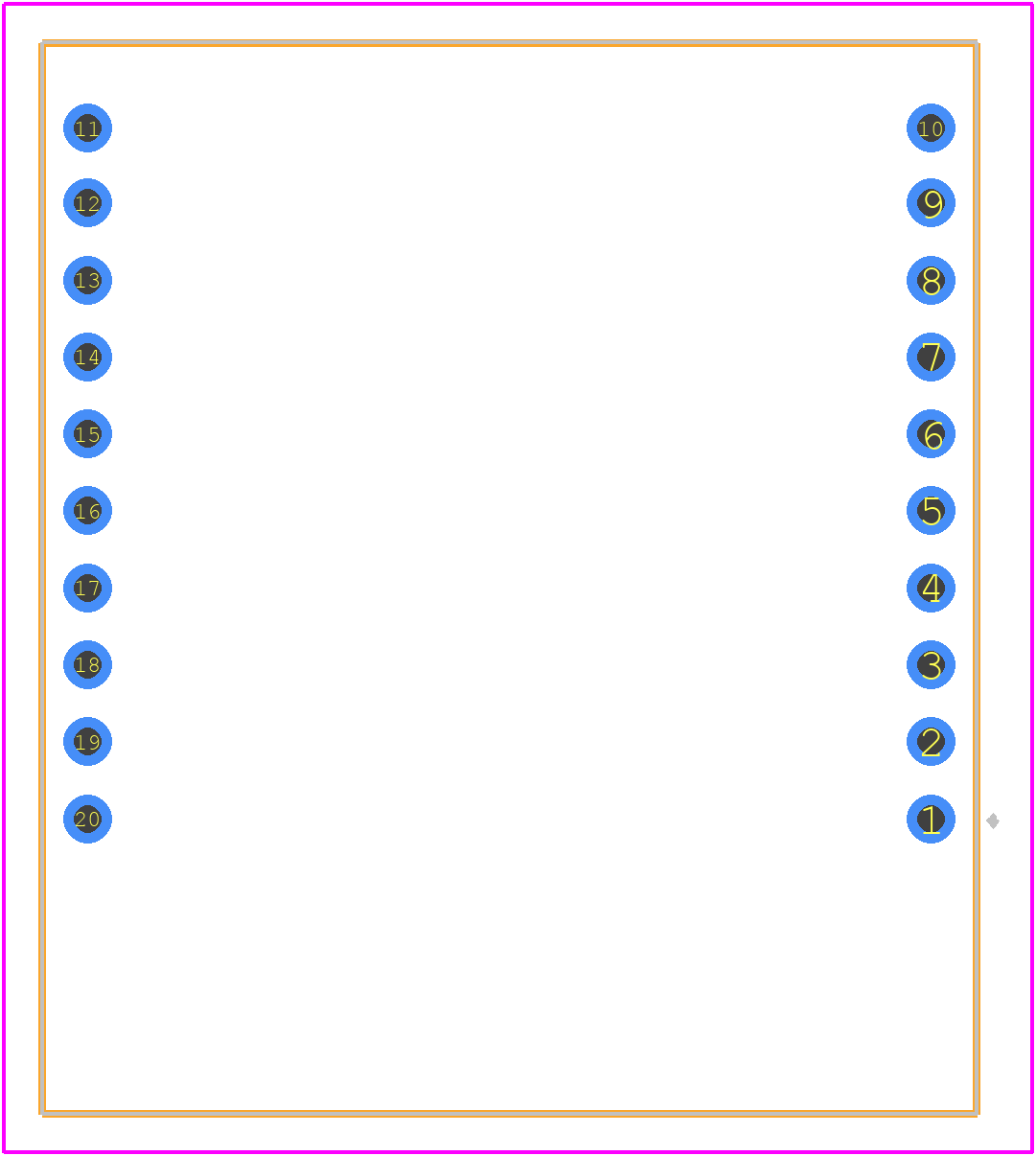

XB24CZ7UIT-004 - Digi International PCB footprint - Other - Other - XB24CZ7UIT-004-4
click to zoom
3D Models
XB24CZ7UIT-004 - Digi International - 3D model - Other - XB24CZ7UIT-004-4
click to zoom

XB24CZ7UIT-004 Details

  • Manufacturer Part Number:

    XB24CZ7UIT-004

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Cambodia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8517.62.00.90

  • Manufacturer:

    Digi International Inc

  • YTEOL:

    3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

XB24CZ7UIT-004 Frequently Asked Questions (FAQs)

  • The recommended antenna for the XB24CZ7UIT-004 is a 2.4 GHz monopole antenna with a gain of 2 dBi to 5 dBi. However, the optimal antenna choice may vary depending on the specific application and environment.
  • The XB24CZ7UIT-004 module can be configured for different frequency channels using the XBee API or AT commands. The module supports 16 channels in the 2.4 GHz frequency band, and the channel can be set using the `ATCH` command.
  • The maximum transmission power of the XB24CZ7UIT-004 module is +19 dBm (80 mW). However, the actual transmission power can be adjusted using the `ATPW` command to comply with regulatory requirements or optimize performance.
  • The XB24CZ7UIT-004 module supports AES-128 encryption and can be configured using the `ATEE` command. Additionally, the module supports secure connections using SSL/TLS and can be configured using the `ATSS` command.
  • The power consumption of the XB24CZ7UIT-004 module varies depending on the mode. In transmit mode, the module consumes around 240 mA. In receive mode, it consumes around 50 mA. In sleep mode, it consumes around 10 μA.
