XC2C512-10FGG324C - AMD

XC2C512-10FGG324C Details

• Manufacturer Part Number:

  XC2C512-10FGG324C

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

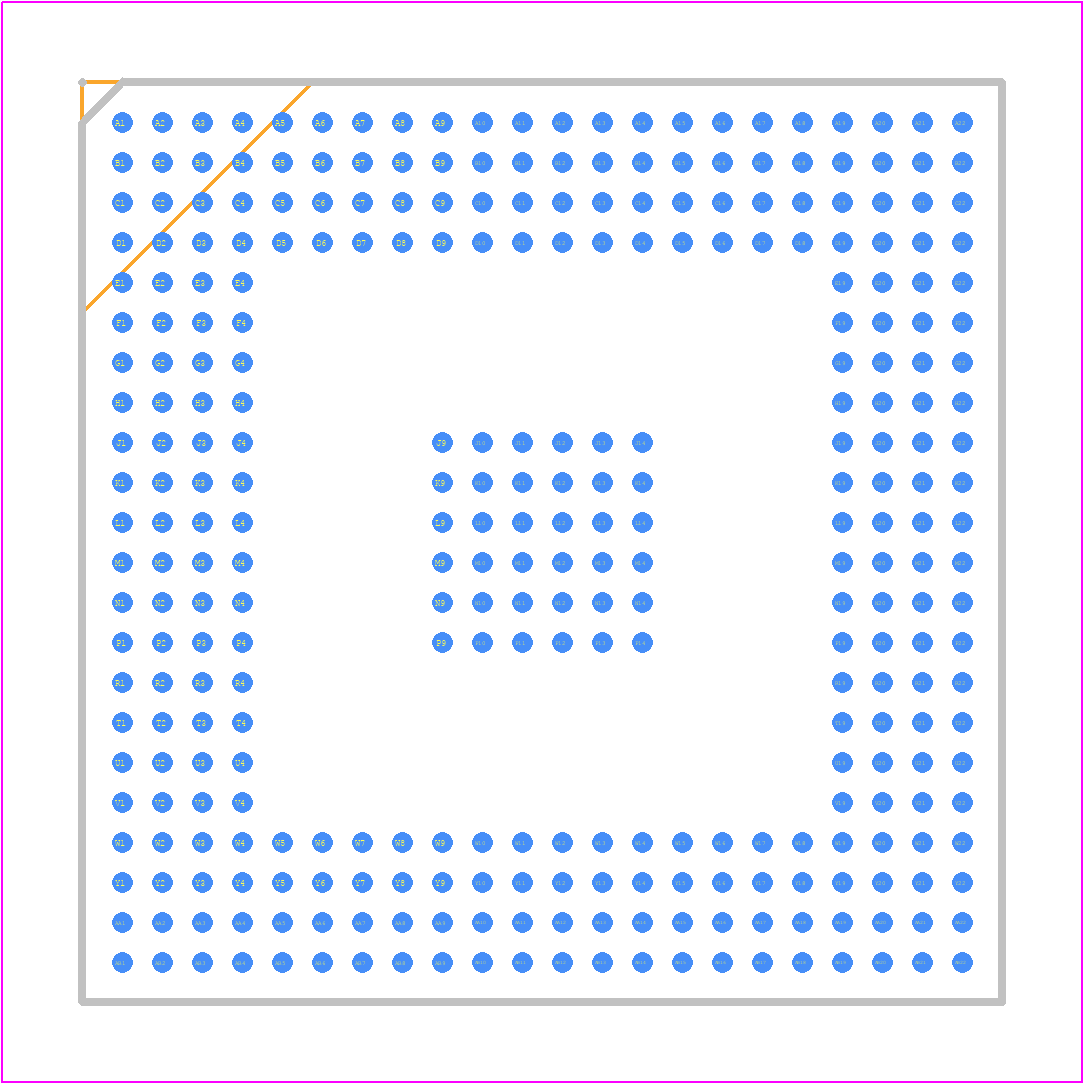

  23 X 23 MM, 1 MM PITCH, LEAD FREE, PLASTIC, FBGA-324

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.d

• HTS Code:

  8542.31.00.55

• Manufacturer:

  AMD

• YTEOL:

  0

• Additional Feature:

  YES

• Architecture:

  PLA-TYPE

• Clock Frequency-Max:

  91 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  S-PBGA-B324

• JESD-609 Code:

  e1

• JTAG BST:

  YES

• Length:

  23 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  270

• Number of Inputs:

  270

• Number of Macro Cells:

  512

• Number of Outputs:

  270

• Number of Terminals:

  324

• Operating Temperature-Max:

  70 °C

• Organization:

  0 DEDICATED INPUTS, 270 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA324,22X22,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  250

• Programmable Logic Type:

  FLASH PLD

• Propagation Delay:

  10 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.5 mm

• Supply Voltage-Max:

  1.9 V

• Supply Voltage-Min:

  1.7 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN SILVER COPPER

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  23 mm
