The maximum operating frequency of the XC3S1600E-4FGG320C is 350 MHz.
You can implement a DDR2 interface on the XC3S1600E-4FGG320C using the FPGA's DDR2 memory interface IP core, which is available in the Xilinx IP catalog.
Yes, the XC3S1600E-4FGG320C is suitable for high-reliability applications, as it is fabricated using a 90nm process and has undergone rigorous testing and qualification for aerospace, defense, and industrial applications.
You can optimize power consumption on the XC3S1600E-4FGG320C by using power-aware design techniques, such as clock gating, voltage scaling, and dynamic voltage and frequency scaling, as well as using the Xilinx Power Analyzer tool.
The XC3S1600E-4FGG320C has a total of 320 user I/Os, which can be used for a variety of interfaces, including LVDS, LVCMOS, and HSTL.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
XC3S1600E-4FGG320C Overview

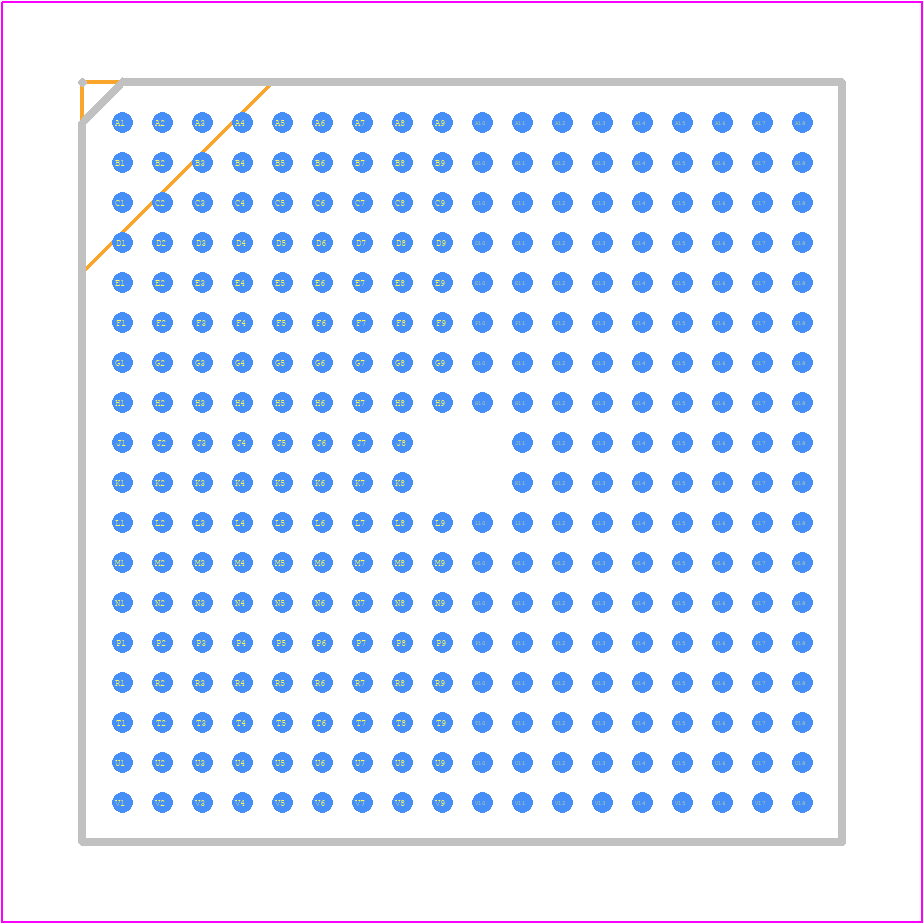

Use the download button to access the XC3S1600E-4FGG320C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC3S1,
or try a keyword search, such as Field Programmable Gate Arrays
