XC3S1600E-5FGG320C - AMD

Description: FPGA - Field Programmable Gate Array XC3S1600E-5FGG320C

Download XC3S1600E-5FGG320C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

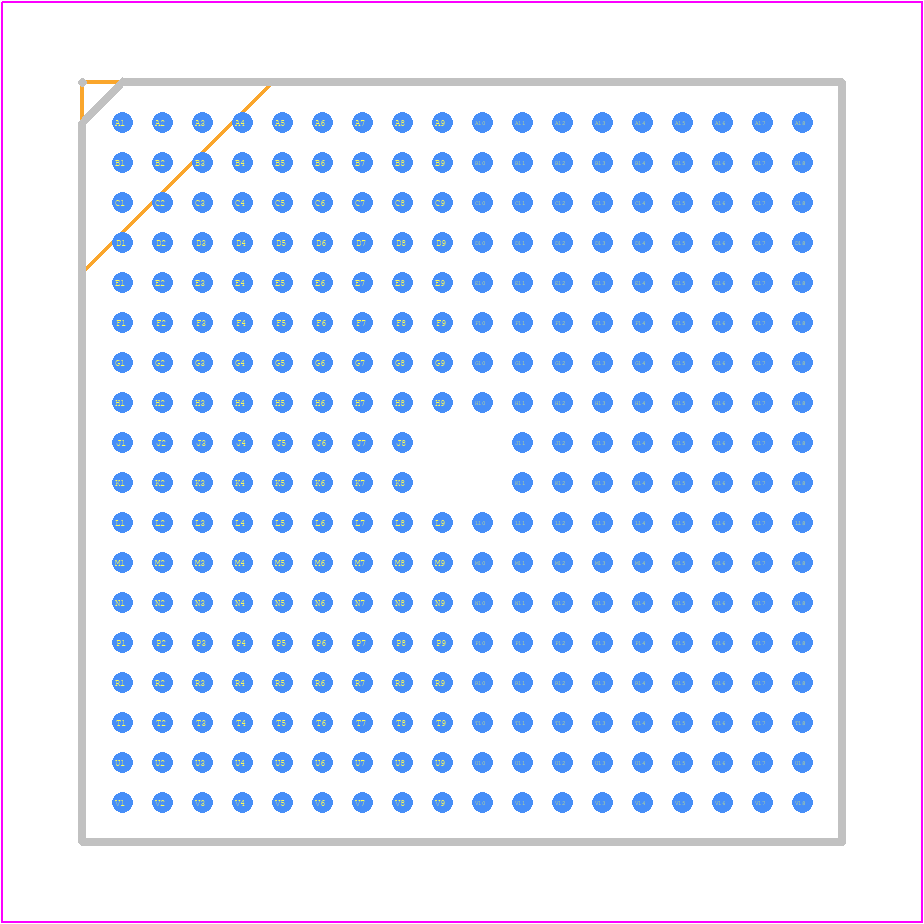

XC3S1600E-5FGG320C - AMD PCB footprint - BGA - BGA - FGG320
click to zoom
3D Models
XC3S1600E-5FGG320C - AMD  - 3D model - BGA - FGG320
click to zoom

XC3S1600E-5FGG320C Details

  • Manufacturer Part Number:

    XC3S1600E-5FGG320C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FBGA-320

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    0

  • Clock Frequency-Max:

    657 MHz

  • Combinatorial Delay of a CLB-Max:

    0.66 ns

  • JESD-30 Code:

    S-PBGA-B320

  • JESD-609 Code:

    e1

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    3688

  • Number of Equivalent Gates:

    1600000

  • Number of Inputs:

    250

  • Number of Logic Cells:

    33192

  • Number of Outputs:

    194

  • Number of Terminals:

    320

  • Operating Temperature-Max:

    85 °C

  • Organization:

    3688 CLBS, 1600000 GATES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA320,18X18,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 90 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

XC3S1600E-5FGG320C Frequently Asked Questions (FAQs)

  • The maximum operating frequency of XC3S1600E-5FGG320C is 320 MHz.
  • You can implement DDR memory interface with XC3S1600E-5FGG320C using the Xilinx MIG (Memory Interface Generator) tool, which provides a pre-designed and verified DDR memory interface IP core.
  • Yes, XC3S1600E-5FGG320C is suitable for high-reliability applications, as it is designed to meet the requirements of aerospace, defense, and industrial applications, and is available in a variety of temperature grades, including commercial, industrial, and extended.
  • You can optimize power consumption in XC3S1600E-5FGG320C by using power-aware design techniques, such as clock gating, voltage scaling, and dynamic voltage and frequency scaling, as well as using the Xilinx Power Estimator tool to estimate and optimize power consumption.
  • Yes, XC3S1600E-5FGG320C is compatible with Xilinx ISE Design Suite, which provides a comprehensive development environment for designing, implementing, and verifying digital systems.
