The maximum operating frequency of the XC4VLX25-11FFG668C is 330 MHz, but it can vary depending on the specific application and design.
You can implement a DDR3 memory interface on the XC4VLX25-11FFG668C using the Xilinx MIG (Memory Interface Generator) tool, which provides a pre-designed and verified IP core for DDR3 memory interfaces.
The power consumption of the XC4VLX25-11FFG668C depends on the specific application, clock frequency, and design. However, according to the datasheet, the typical static power consumption is around 1.2W, and the dynamic power consumption can range from 2.5W to 5W.
Yes, the XC4VLX25-11FFG668C is capable of supporting high-speed serial interfaces like PCIe and SATA. It has built-in transceivers that can operate at speeds up to 6.25 Gbps, making it suitable for these applications.
You can program and configure the XC4VLX25-11FFG668C using the Xilinx Vivado Design Suite, which provides a comprehensive development environment for designing, implementing, and testing FPGA-based systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC4VLX25-11FFG668C Overview

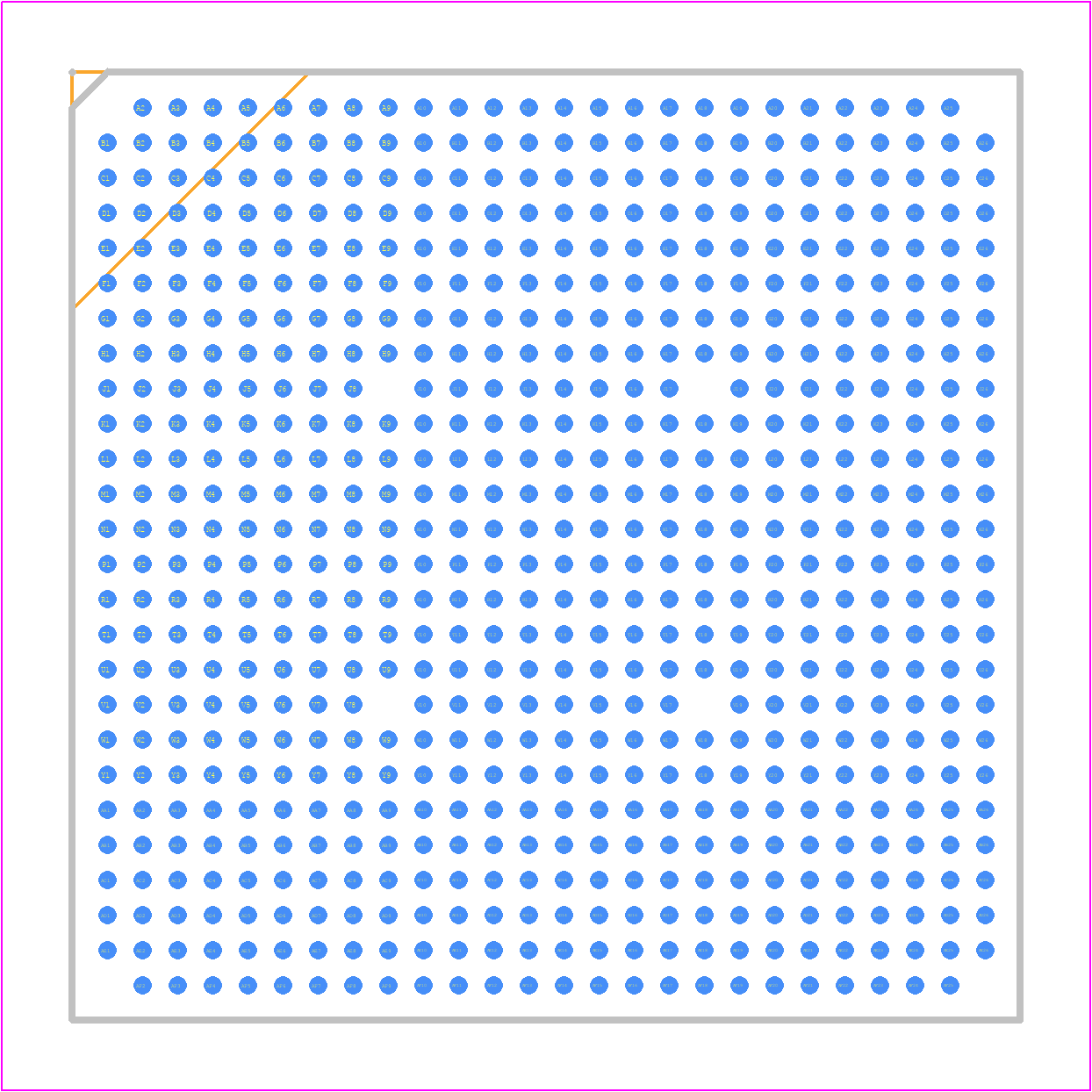

Use the download button to access the XC4VLX25-11FFG668C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC4VL,
or try a keyword search, such as Field Programmable Gate Arrays
