The maximum operating frequency of the XC5VLX50-1FF1153I is 550 MHz.
You can implement a DDR3 memory interface using the Memory Interface Generator (MIG) tool in Vivado Design Suite, which provides a pre-built IP core for DDR3 memory interfaces.
The power consumption of the XC5VLX50-1FF1153I depends on the specific design and usage. However, the typical static power consumption is around 1.2W, and the dynamic power consumption can range from 2W to 10W depending on the clock frequency and activity.
Yes, the XC5VLX50-1FF1153I has built-in transceivers that support high-speed serial interfaces like PCIe, SATA, and Gigabit Ethernet.
You can use the Vivado Design Suite's built-in debugging tools, such as the Vivado Logic Analyzer and the Vivado Serial I/O Analyzer, to debug and verify your design. Additionally, you can use external debugging tools like oscilloscopes and logic analyzers.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC5VLX50-1FF1153I Overview

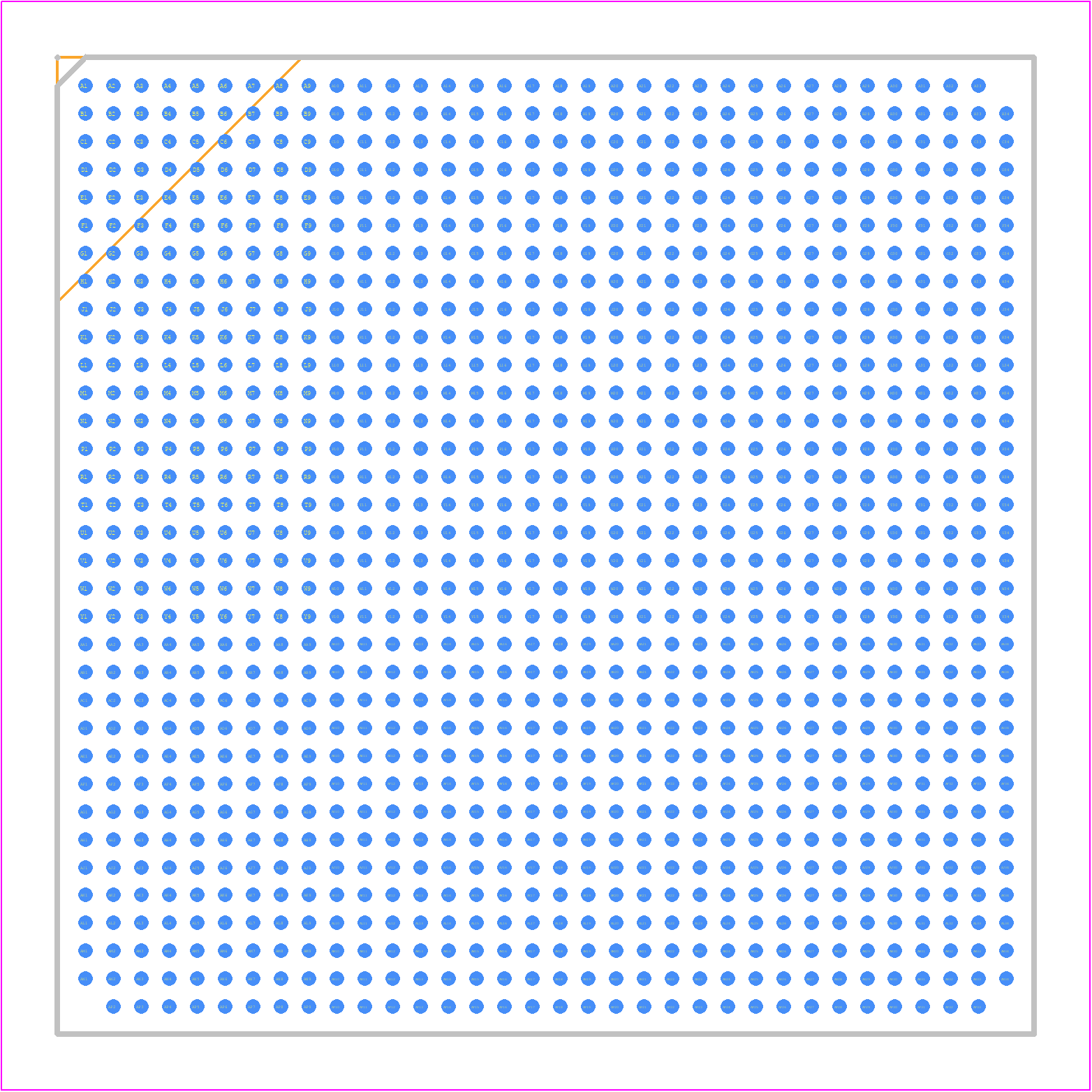

Use the download button to access the XC5VLX50-1FF1153I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC5VL,
or try a keyword search, such as Field Programmable Gate Arrays
