XC5VSX50T-3FFG1136C - AMD

XC5VSX50T-3FFG1136C Details

• Manufacturer Part Number:

  XC5VSX50T-3FFG1136C

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

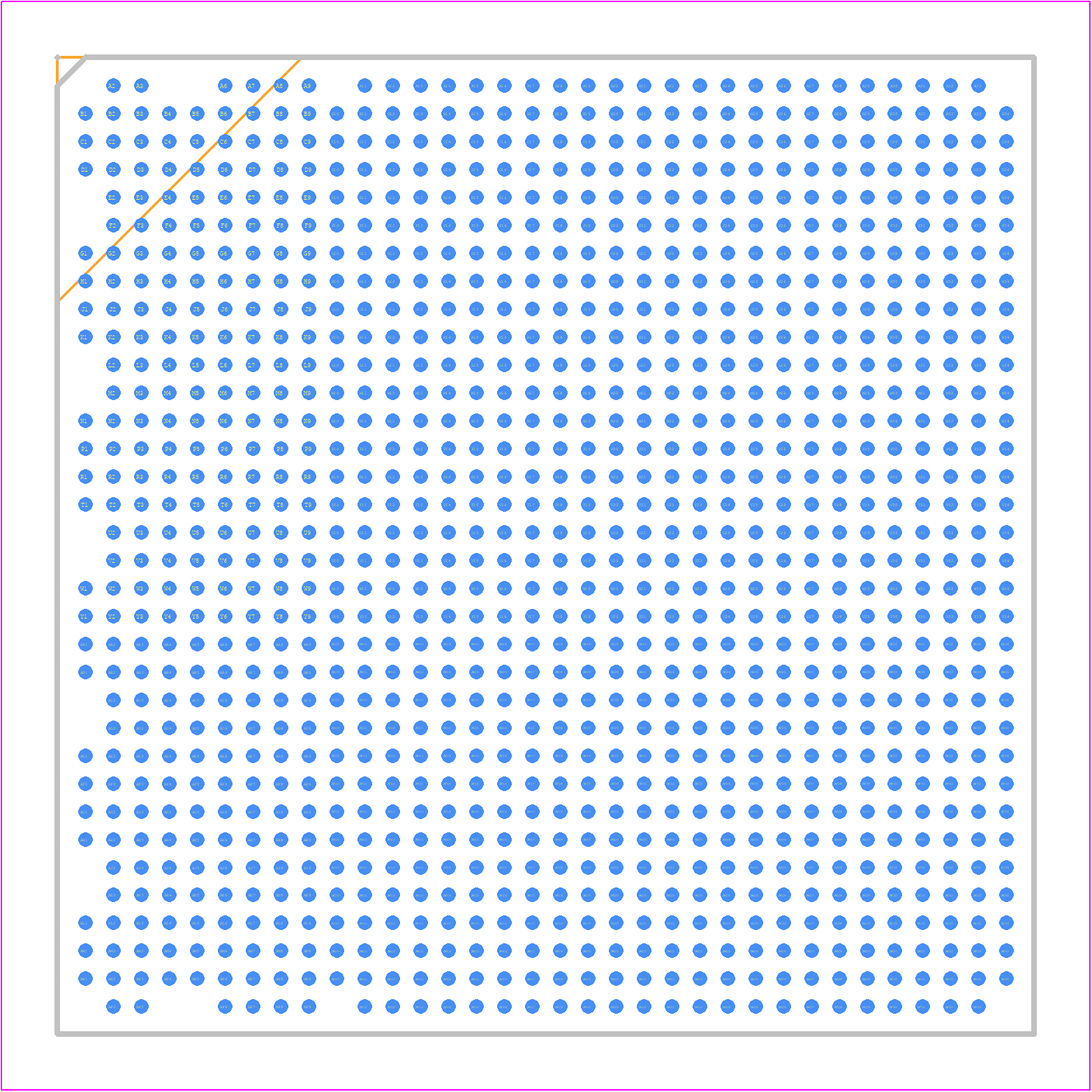

• Package Description:

  BGA-1136

• Country Of Origin:

  Taiwan

• HTS Code:

  8542.31.00.60

• Manufacturer:

  AMD

• YTEOL:

  6.2

• Combinatorial Delay of a CLB-Max:

  0.67 ns

• JESD-30 Code:

  S-PBGA-B1136

• JESD-609 Code:

  e1

• Length:

  35 mm

• Moisture Sensitivity Level:

  4

• Number of CLBs:

  4080

• Number of Inputs:

  480

• Number of Logic Cells:

  52224

• Number of Outputs:

  480

• Number of Terminals:

  1136

• Operating Temperature-Max:

  85 °C

• Organization:

  4080 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA1136,34X34,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  245

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.25 mm

• Supply Voltage-Max:

  1.05 V

• Supply Voltage-Min:

  0.95 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  CMOS, 65 nm

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  35 mm
