A good PCB layout for XC6121E616ER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the XC6121E616ER-G output voltage, it is essential to use a suitable output capacitor with a low ESR value, such as a ceramic capacitor. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
The maximum ambient temperature range for the XC6121E616ER-G is -40°C to +85°C. However, the device can operate at a higher temperature range with derating.
Yes, the XC6121E616ER-G is suitable for high-reliability applications due to its high-quality manufacturing process and rigorous testing. However, it is essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
To troubleshoot issues with the XC6121E616ER-G, start by checking the input voltage, output voltage, and current consumption. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes or contact Torex Semiconductor LTD's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6121E616ER-G Overview

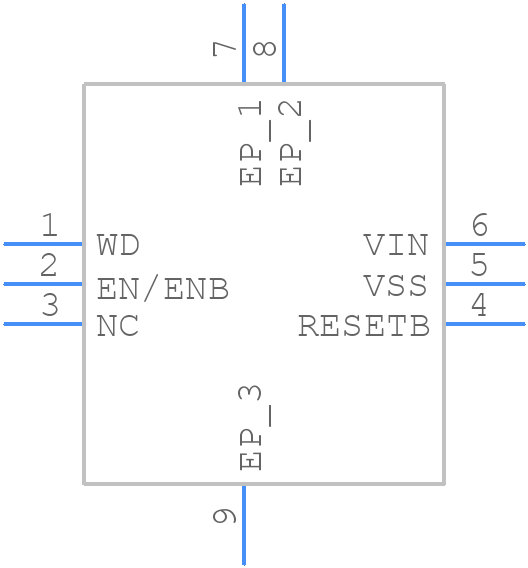

Use the download button to access the XC6121E616ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC612,
or try a keyword search, such as Power Management Circuits
