Part Image

XC6138CCRJ6R-G - Torex

Description: Operating voltage range : 2.2V ~ 6.0V VSEN voltage range : 0.0V ~ 76.0V

Download XC6138CCRJ6R-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

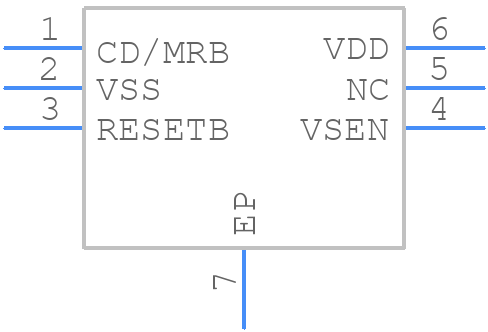

XC6138CCRJ6R-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC6138CCRJ6R-G - Torex PCB footprint - Small Outline No-lead - Small Outline No-lead - XC6138CCRJ6R-G*
click to zoom
3D Models
XC6138CCRJ6R-G - Torex - 3D model - Small Outline No-lead - XC6138CCRJ6R-G*
click to zoom

XC6138CCRJ6R-G Details

  • Manufacturer Part Number:

    XC6138CCRJ6R-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    VOLTAGE DETECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC6138CCRJ6R-G Overview

Use the download button to access the XC6138CCRJ6R-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC613, or try a keyword search, such as Power Management Circuits
