XC6192BANNER-G - Torex

Description: Power Switch ICs - Power Distribution Power Saving Push Button Load Switch

Download XC6192BANNER-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

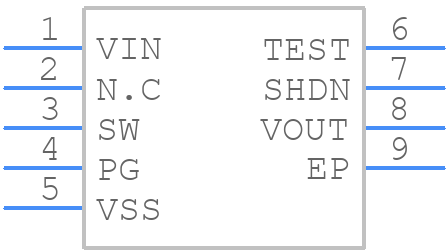

XC6192BANNER-G - Torex PCB footprint - Other - Other - USP-8B06
click to zoom
3D Models
XC6192BANNER-G - Torex  - 3D model - Other - USP-8B06
click to zoom

XC6192BANNER-G Details

  • Manufacturer Part Number:

    XC6192BANNER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    USP-8

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-09-29

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    0.33 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

XC6192BANNER-G Frequently Asked Questions (FAQs)

  • A good PCB layout for XC6192BANNER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the XC6192BANNER-G output voltage, it is essential to use a suitable output capacitor with a low ESR value, such as a ceramic capacitor. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
  • Although the datasheet specifies a maximum input voltage of 6.5V, it is recommended to limit the input voltage to 6V to ensure reliable operation and prevent damage to the IC.
  • While XC6192BANNER-G is rated for operation up to 85°C, it is essential to consider the derating of the IC's performance at high temperatures. It is recommended to reduce the input voltage and output current to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with XC6192BANNER-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. If the issue persists, check for overheating, and ensure that the IC is not damaged.
