XC6802A42XER-G - Torex

Description: Battery Management 800mA Linear Battery Charger

Download XC6802A42XER-G Model
Schematic

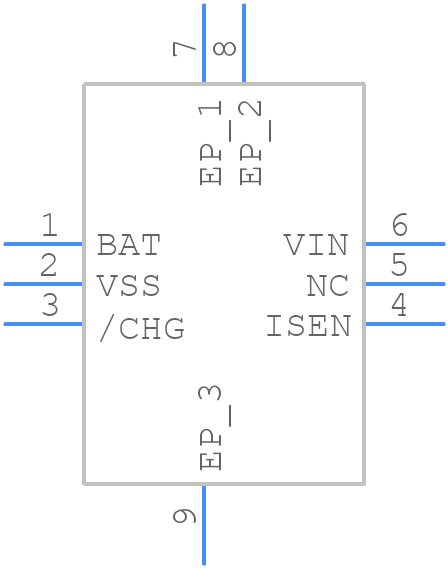

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XC6802A42XER-G - Torex PCB footprint - Other - Other - USP- 6C
click to zoom
3D Models
XC6802A42XER-G - Torex  - 3D model - Other - USP- 6C
click to zoom

XC6802A42XER-G Details

  • Manufacturer Part Number:

    XC6802A42XER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-N6

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    0.035 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Silver/Gold (Ni/Ag/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    1.8 mm

XC6802A42XER-G Frequently Asked Questions (FAQs)

  • A good PCB layout for XC6802A42XER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to use the recommended output capacitor (Cout) with a value of 10uF or more, and an ESR of 1Ω or less. Additionally, the input capacitor (Cin) should be placed close to the IC, and the input voltage should be within the recommended range.
  • The maximum ambient temperature for reliable operation of XC6802A42XER-G is 85°C. However, it's recommended to derate the output current and consider thermal design considerations to ensure reliable operation at high temperatures.
  • While XC6802A42XER-G is a high-quality voltage regulator, it's essential to evaluate its suitability for high-reliability or automotive applications. Torex Semiconductor LTD provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation.
  • To troubleshoot issues with XC6802A42XER-G, start by verifying the input voltage, output voltage, and output current. Check the PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance.
