Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, thermal vias, and routing to minimize noise and ensure stable operation.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Torex recommends using a low-ESR capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the output voltage.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Torex recommends derating the device for reliable operation above 70°C. Consult the datasheet and application notes for thermal derating guidelines.
Yes, XC6804A3E1QR-G is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow Torex's guidelines for component selection, PCB design, and testing to meet the required reliability standards.
Start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component selection, and thermal management. Consult Torex's application notes and technical support resources for troubleshooting guidelines and FAQs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6804A3E1QR-G Overview

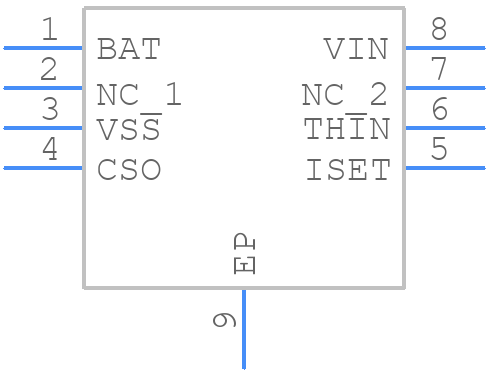

Use the download button to access the XC6804A3E1QR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC680,
or try a keyword search, such as Power Management Circuits
