- Part Number XC6804A4E1QR-G
- Manufacturer Torex
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOP-8FD
- Released Date Sep 28, 2020
- Last Modified Date Sep 29, 2025 4:52 PM UTC
- Pinout / Pin List Click Here (Member Only)
XC6804A4E1QR-G Details
-
Manufacturer Part Number:
XC6804A4E1QR-G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Torex Semiconductor LTD
-
YTEOL:
10
-
Adjustable Threshold:
NO
-
Analog IC - Other Type:
LINEAR BATTERY CHARGER
XC6804A4E1QR-G Frequently Asked Questions (FAQs)
-
Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the feedback resistors should be placed close to the output pin. A detailed layout guide can be found in the Torex application note AN-104.
-
To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor should be selected based on the output voltage and current requirements. A minimum output capacitance of 10uF is recommended, and the ESR should be less than 1 ohm. The input capacitor should be selected based on the input voltage and current requirements.
-
The maximum ambient temperature for the XC6804A4E1QR-G is 85°C. However, the device can operate up to 125°C with derating. It's essential to follow the thermal design guidelines and ensure proper heat dissipation to prevent overheating.
-
Yes, the XC6804A4E1QR-G is designed to operate in high-vibration environments. However, it's essential to follow the recommended PCB layout and mounting guidelines to ensure the device is securely attached to the PCB. Additionally, the device should be tested and validated in the specific vibration environment to ensure reliability.
-
The recommended input voltage range for the XC6804A4E1QR-G is 2.5V to 5.5V. However, the device can operate down to 2.2V with reduced performance. It's essential to follow the recommended input voltage range to ensure optimal performance and reliability.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
XC6804A4E1QR-G Overview

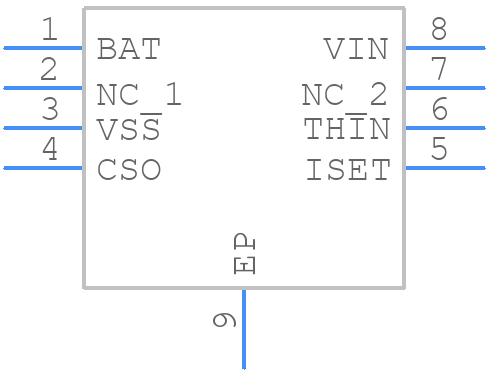

Use the download button to access the XC6804A4E1QR-G schematic symbol, PCB footprint, and 3D model.
