XC6810A42C0R-G - Torex

Description: Linear Charger IC for Li-ion battery With Ultra-small Package Compatible With Wireless Charging WLP-12-01 (1.17 x 1.57 x 0.33mm)

Download XC6810A42C0R-G Model

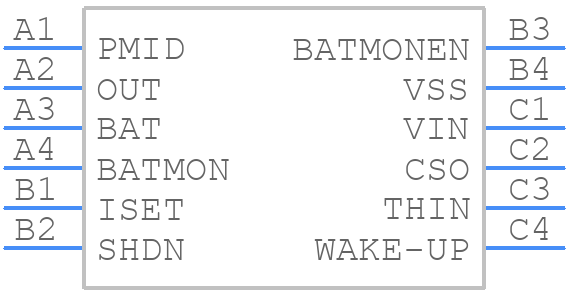

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XC6810A42C0R-G - Torex PCB footprint - BGA - BGA - WLP-12-01
click to zoom
3D Models
XC6810A42C0R-G - Torex  - 3D model - BGA - WLP-12-01
click to zoom

XC6810A42C0R-G Details

  • Manufacturer Part Number:

    XC6810A42C0R-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

XC6810A42C0R-G Frequently Asked Questions (FAQs)

  • Torex recommends a PCB layout with a thermal pad connected to a large copper area on the top and bottom layers to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
  • To ensure stable output voltage, it's recommended to use a capacitor with a low ESR (Equivalent Series Resistance) value, such as a ceramic capacitor, and to follow the recommended input capacitor selection guidelines in the datasheet. Additionally, consider using a voltage regulator with a built-in voltage reference and a low dropout voltage to minimize output voltage variation.
  • The maximum allowable ripple voltage on the input is typically 10% of the nominal input voltage. However, it's recommended to keep the ripple voltage as low as possible to ensure stable operation and minimize noise. A good practice is to use a filter capacitor or a voltage regulator with a built-in filter to reduce input ripple voltage.
  • The XC6810A42C0R-G is rated for operation up to 105°C. However, it's essential to consider the device's power dissipation, thermal resistance, and the PCB's thermal design to ensure reliable operation in high-temperature environments. Consult the datasheet and Torex's application notes for guidance on thermal design and derating.
  • To troubleshoot output voltage instability or oscillation issues, check the input voltage, output capacitor selection, and PCB layout. Ensure that the input voltage is within the recommended range, and the output capacitor meets the recommended specifications. Also, verify that the PCB layout follows the recommended guidelines, and there are no unwanted feedback paths or noise coupling. Consult the datasheet and Torex's application notes for guidance on troubleshooting and design optimization.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC6810A42C0R-G Overview

Use the download button to access the XC6810A42C0R-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC681, or try a keyword search, such as Power Management Circuits
