XC6810B44J0R-G - Torex

Description: Linear Charger IC for Li-ion battery With Ultra-small Package Compatible With Wireless Charging WLP-12-01 (1.17 x 1.57 x 0.33mm)

Download XC6810B44J0R-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

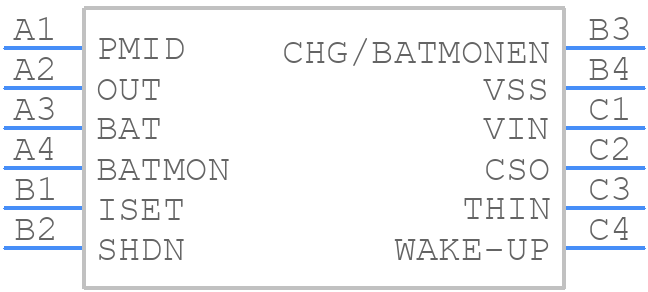

XC6810B44J0R-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC6810B44J0R-G - Torex PCB footprint - BGA - BGA - WLP-12-01
click to zoom
3D Models
XC6810B44J0R-G - Torex - 3D model - BGA - WLP-12-01
click to zoom

XC6810B44J0R-G Details

  • Manufacturer Part Number:

    XC6810B44J0R-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC6810B44J0R-G Overview

Use the download button to access the XC6810B44J0R-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC681, or try a keyword search, such as Power Management Circuits
