The maximum operating frequency is 350 MHz, but it depends on the specific application and design.
You can use the MIG (Memory Interface Generator) tool provided by Xilinx to generate a DDR3 memory interface. The tool will generate the necessary IP cores and provide guidance on implementation.
The power consumption varies depending on the design and usage. However, the typical power consumption is around 1.2W to 2.5W. You can use Xilinx's Power Estimator tool to get a more accurate estimate.
Yes, the XC6SLX25T-2FGG484C supports high-speed serial interfaces like PCIe and SATA. You can use the FPGA's GTX transceivers to implement these interfaces.
You can use Xilinx's ChipScope Pro tool to debug and verify your design. The tool provides a set of debug cores and a graphical interface to analyze and debug your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6SLX25T-2FGG484C Overview

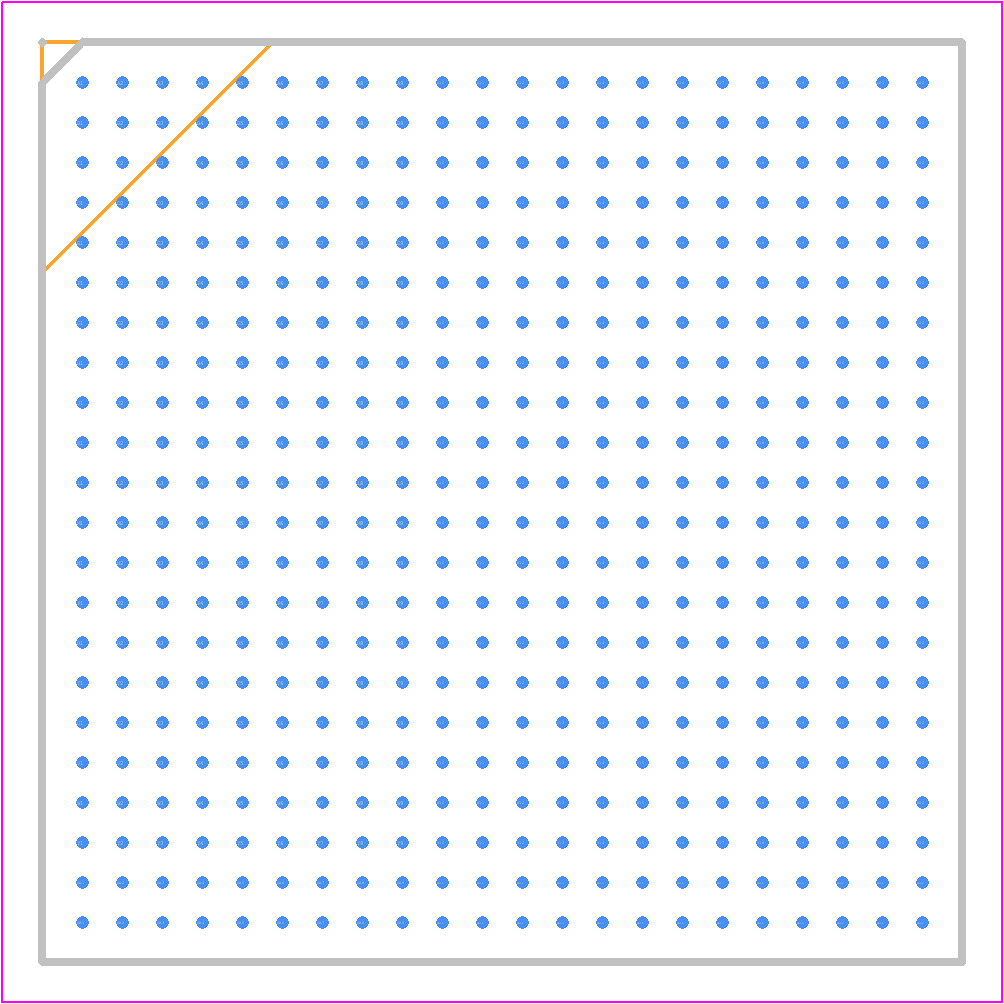

Use the download button to access the XC6SLX25T-2FGG484C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC6SL,
or try a keyword search, such as Field Programmable Gate Arrays
