The maximum operating frequency of the XC6VLX240T-2FFG1156C is 550 MHz, but it depends on the specific application, clock domain, and design implementation.
To optimize power consumption, use Xilinx's Power Estimator (XPE) tool, enable power-saving features like clock gating and dynamic voltage scaling, and optimize your design for low power using techniques like pipelining and parallel processing.
The -2 speed grade has a maximum clock frequency of 550 MHz, while the -3 speed grade has a maximum clock frequency of 650 MHz. The -3 speed grade is faster but also consumes more power.
Yes, the XC6VLX240T-2FFG1156C is suitable for high-reliability applications, as it is designed to meet the requirements of aerospace, defense, and industrial applications. However, you should follow Xilinx's guidelines for designing and testing high-reliability systems.
To ensure signal integrity, use Xilinx's ISE Design Suite to analyze and optimize your design for signal integrity, follow best practices for PCB design and layout, and use IBIS models to simulate signal behavior.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6VLX240T-2FFG1156C Overview

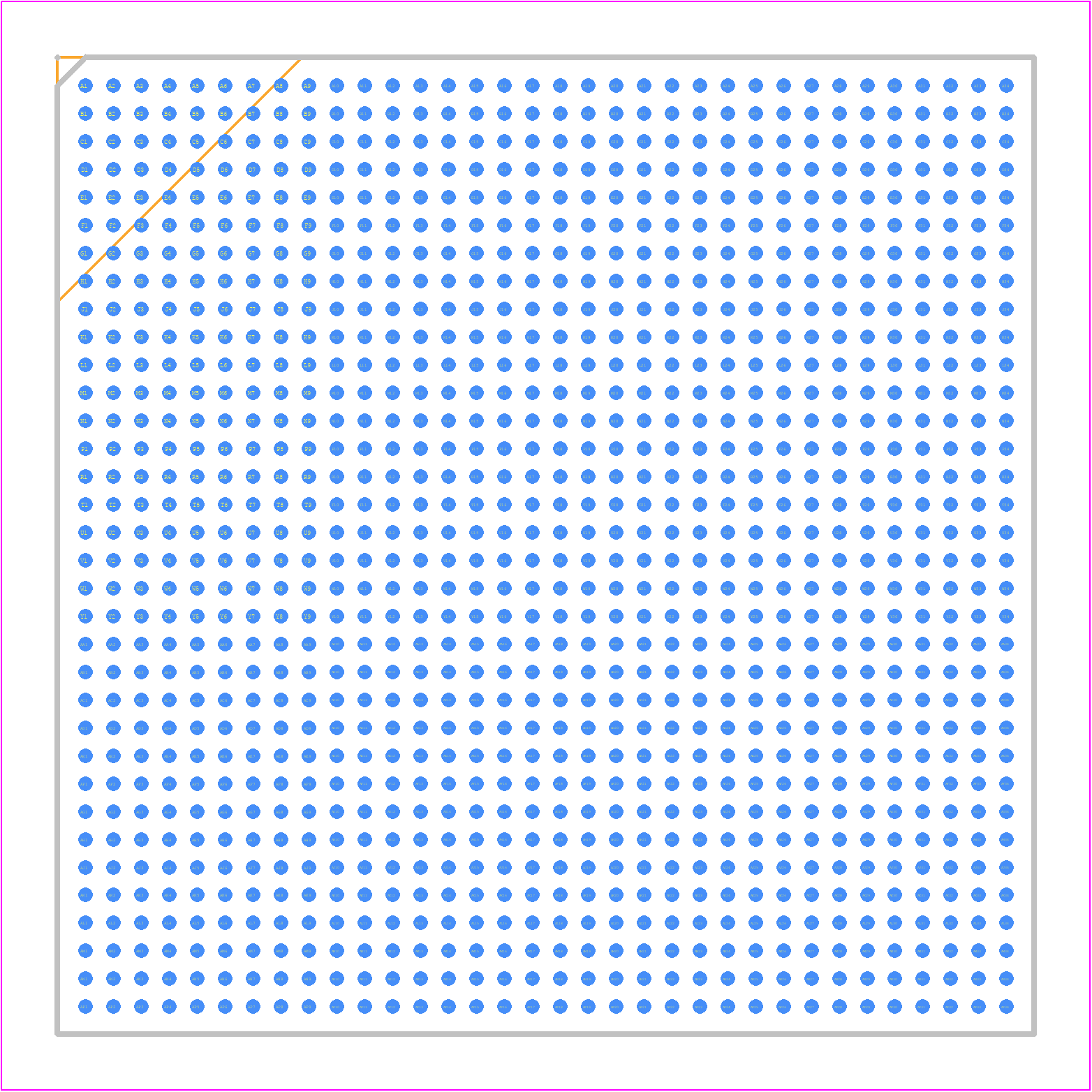

Use the download button to access the XC6VLX240T-2FFG1156C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC6VL,
or try a keyword search, such as Field Programmable Gate Arrays
